Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove luggage side lower finisher RH. Refer to Removal and Installation.

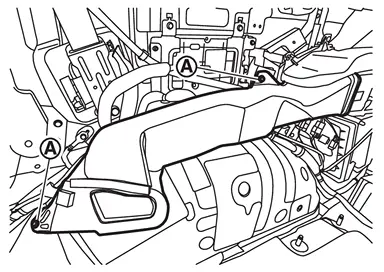

Remove rear foot duct mounting screws
.
Disengage harness fixing clip, and then remove rear foot duct.
INSTALLATION
Install in the reverse order of removal.
Rear Foot Duct
...
