Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Rear Ventilator Duct 1
Remove headlining assembly. Refer to Removal and Installation.

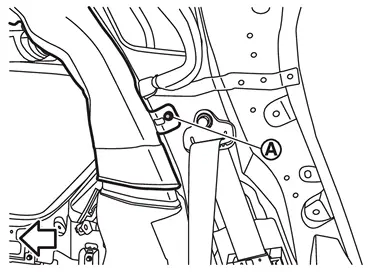

Remove rear ventilator duct 1 mounting bolt
.
 | : Vehicle front |

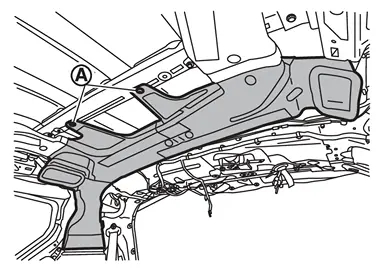

Remove fixing clips , and then remove rear ventilator duct 1.
Rear Ventilator Duct 2
Remove headlining assembly. Refer to Removal and Installation.
Disconnect rear drain hose LH and RH from moonroof unit assembly. Refer to Removal and Installation.

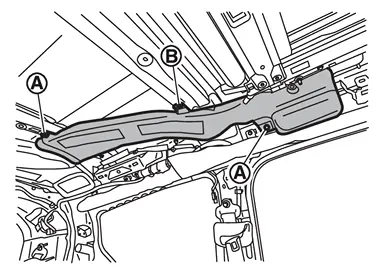

Remove mounting bolts and fixing clip
, and then remove rear ventilator duct 2.
INSTALLATION
Install in the reverse order of removal.
