Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
Remove front grille. Refer to the following.
Off road models: Removal and Installation
City models: Removal and Installation
Remove front bumper fascia. Refer to the following.
Off road models: Removal and Installation
City models: Removal and Installation
Remove radiator air guide upper. Refer to Removal and Installation.
Remove condenser inlet pipe. Refer to Removal and Installation.
Remove condenser outlet pipe. Refer to Removal and Installation.
Remove radiator core support. Refer to Removal and Installation.
Remove radiator air guide (RH and LH). Refer to Removal and Installation.
Disconnect refrigerant pressure sensor harness connector. Refer to Removal and Installation.

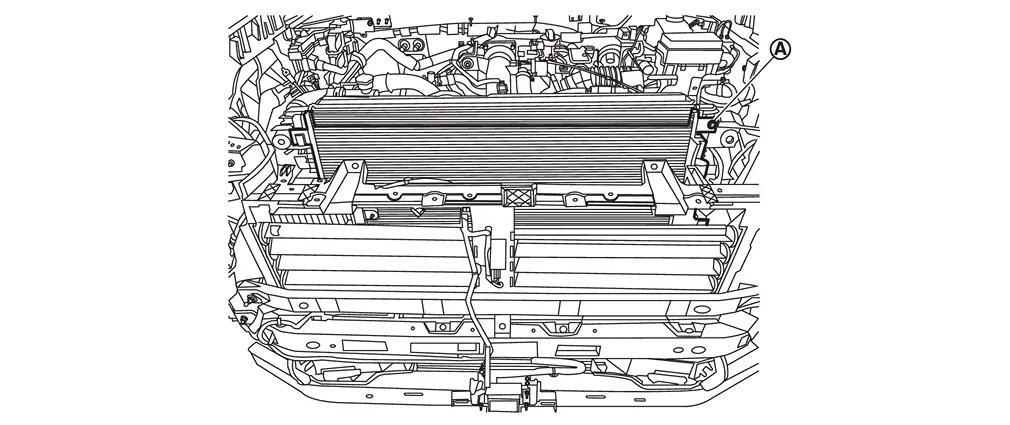

Remove mounting bolt
.

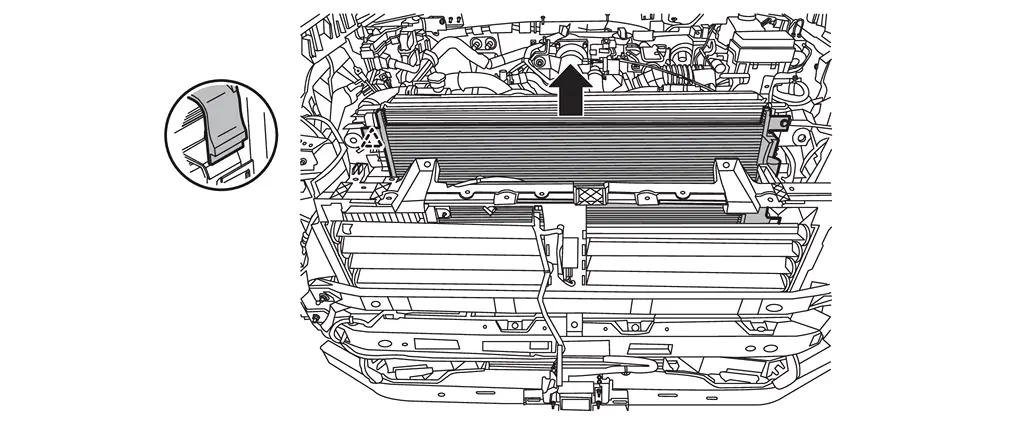

Disengage fixing pawl, and then lift the condenser & liquid tank assembly upwards and remove condenser & liquid tank assembly from radiator.
CAUTION:
Never damage core surface of condenser & liquid tank assembly and radiator.
 | : Pawl |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Perform lubricant adjusting procedure before installing new condenser & liquid tank assembly. Refer to Lubricant Adjusting Procedure for Components Replacement Except A/C compressor.
Condenser
...
