Nissan Armada 2025-2026 Service and Repair Manual: Roof

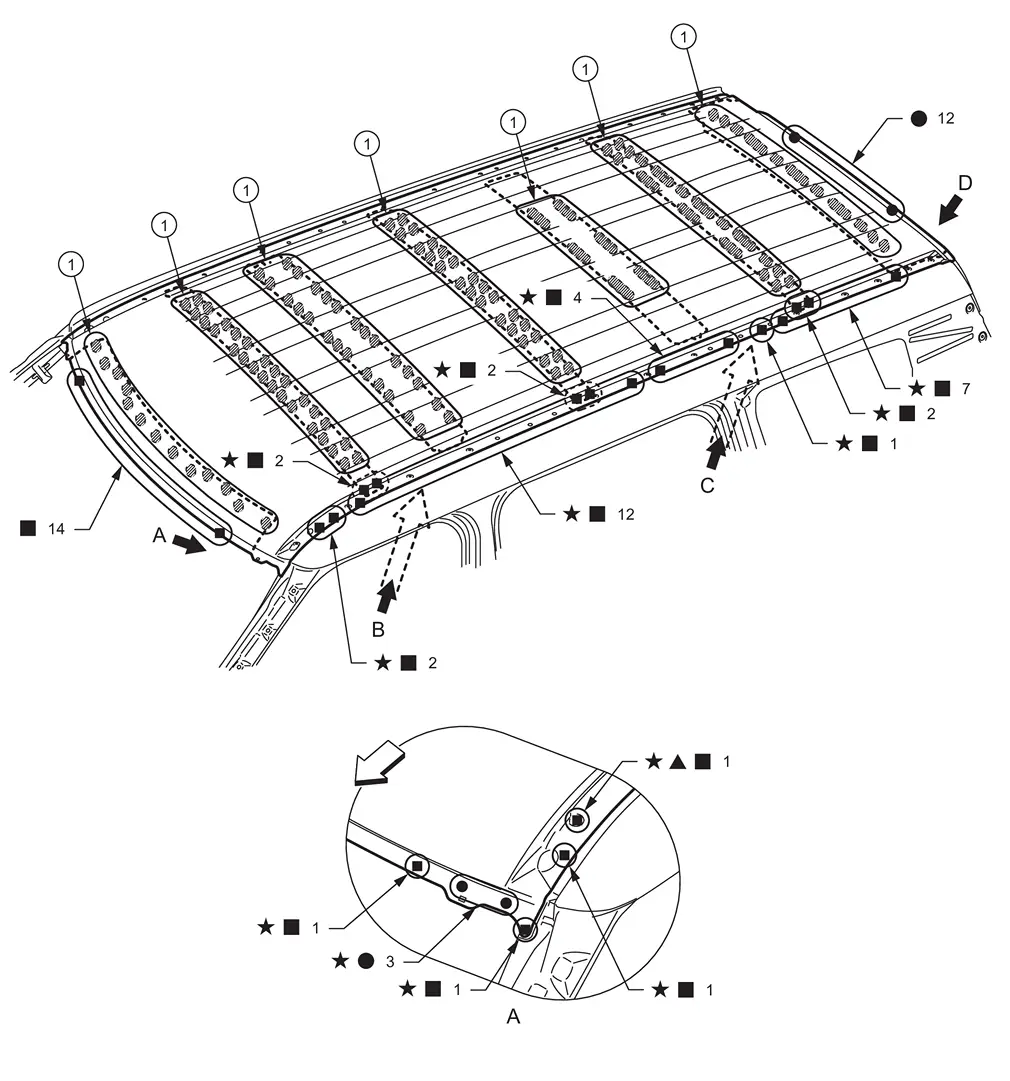

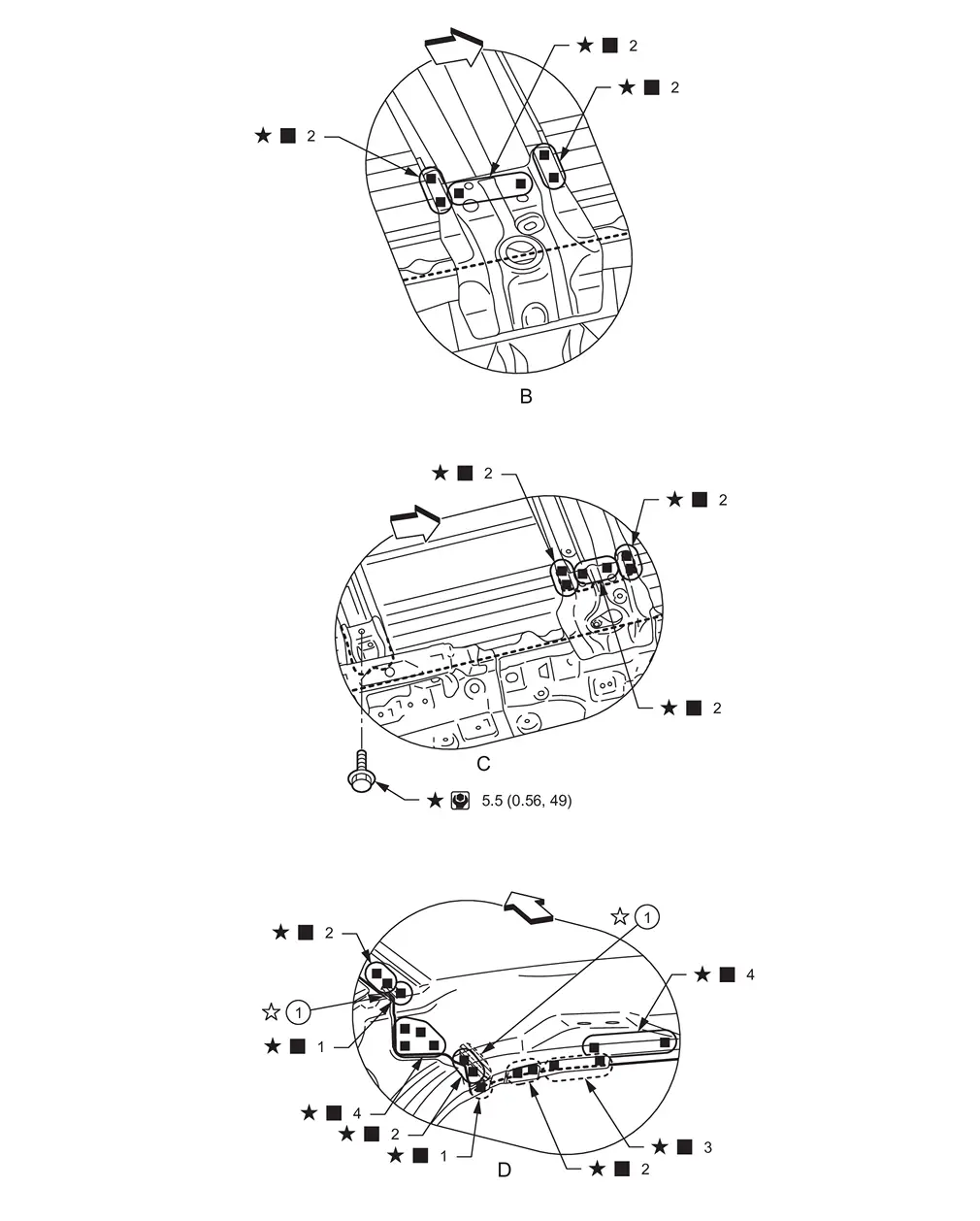

WITHOUT SUNROOF MODELS
 | 3Mâ„¢ Urethane Seam Sealer 08368 or equivalent | ||||
 : Vehicle front | |||||
 : Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel). | |||||
 : Weld the parts onto the back of the component part. | |||||
 : Welding method and the number of welding points apply to both sides of the vehicle. | |||||
| Replacement part | |||||
| • | Roof | • | Roof bow | • | 2nd roof bow |
| • | 3rd roof bow | • | 4th roof bow | • | 5th roof bow |
| Adhesive | ||||
| : Vehicle front | |||||
| : Weld the parts onto the back of the component part. | |||||
| : Welding method, the number of welding points, and the tightening torque apply to both sides of the vehicle. | |||||
 : Adhesive portion apply to both sides of the vehicle. | |||||
 : N·m (kg-m, in-lb) | |||||

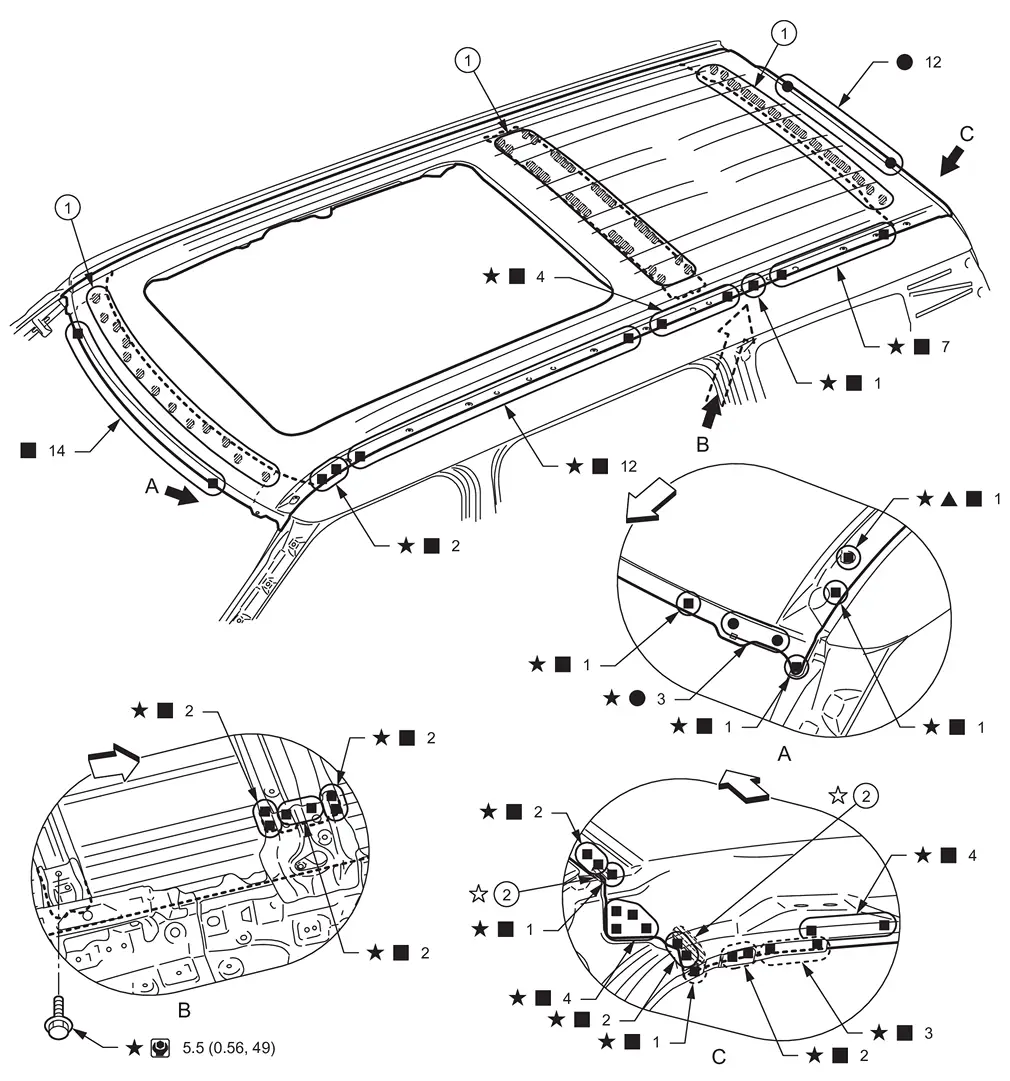

WITH SUNROOF MODELS
| 3Mâ„¢ Urethane Seam Sealer 08368 or equivalent |  | Adhesive | ||
| : Vehicle front | |||||
| : Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel). | |||||
| : Weld the parts onto the back of the component part. | |||||
| : Welding method, the number of welding points, and the tightening torque apply to both sides of the vehicle. | |||||
| : Adhesive portion apply to both sides of the vehicle. | |||||
| : N·m (kg-m, in-lb) | |||||
| Replacement part | |||||
| • | Roof assembly | • | 4th roof bow | ||
Rear Floor Rear
WARNING:
WITH ProPILOT Assist 2.1 MODELS
Work after rear end crossmember is removed.
: Vehicle front : Drill φ6 mm (0.24 in) hole for the plug welding hole (ultra high strength steel). : Drill φ7 m ...
Roof Rail
Work after roof is removed.
: Vehicle front : Drill φ8 mm (0.31 in) hole for the plug welding hole (ultra high strength steel). : Drill φ11 mm (0.43 in) hole for the plug welding hole (ultra high s ...
