Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:

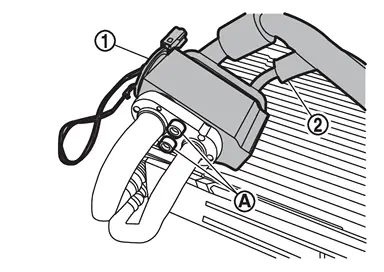

Remove rear evaporator. Refer to Removal and Installation.
Remove mounting bolts
, and then remove rear expansion valve
and rear evaporator pipe
from rear evaporator.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Rear Heater Core
...
