Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove rear A/C unit assembly. Refer to Removal and Installation.
Remove cooler packing.
Remove cooler grommet.

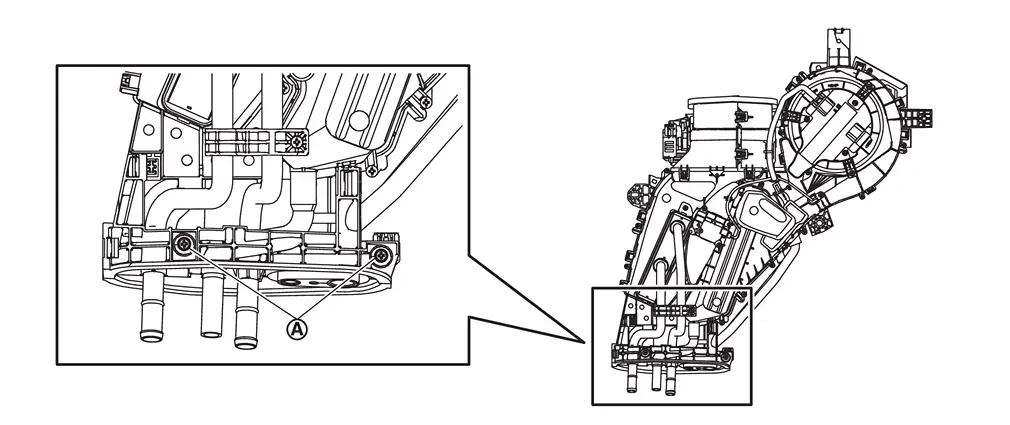

Remove heater pipe support fixing screws
.

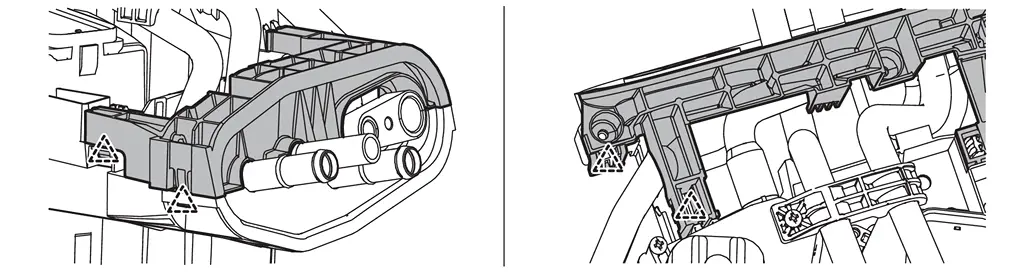

Disengage fixing pawls, and then remove heater pipe support from rear A/C unit case LH.
 | : Pawl |

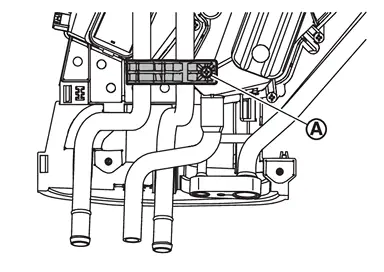

Remove fixing screw , and then remove heater pipe clamp.

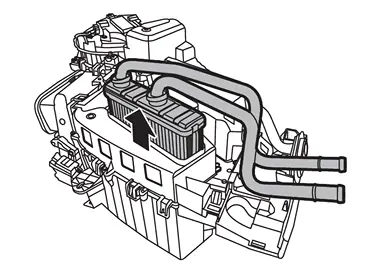

Remove rear heater core.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
Replace cooler packing with new one.
