Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove front center console rear finisher assembly. Refer to Removal and Installation.

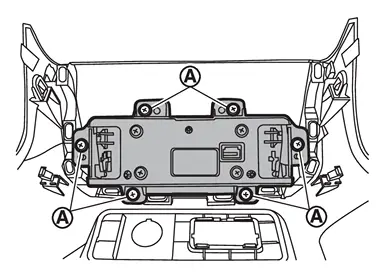

Remove fixing screws
, and then remove rear A/C control assembly.
Remove fixing screws , and then remove rear A/C control from rear A/C control bracket.
INSTALLATION
Install in the reverse order of removal.
Exploded View
Refer to Exploded View. ...
