Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove instrument panel assembly. Refer to Removal and Installation.

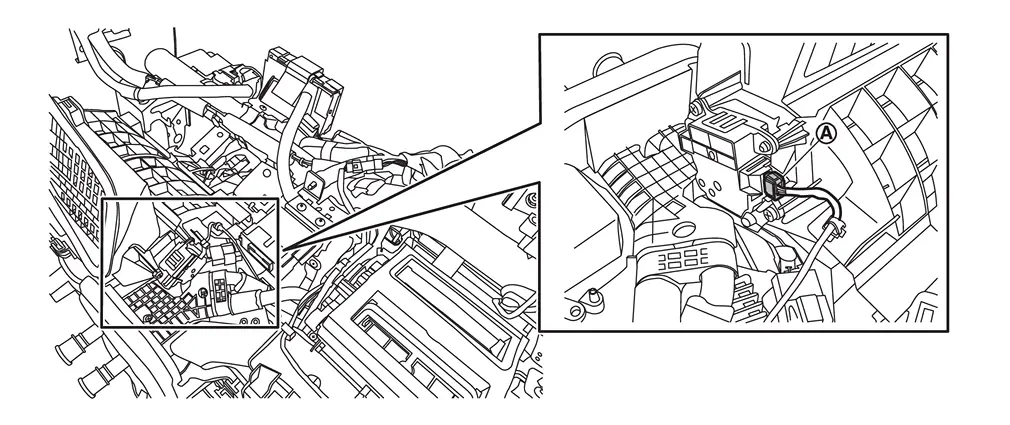

Disconnect intake door motor harness connector
.

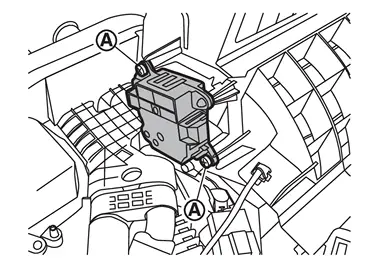

Remove fixing screws , and then remove intake door motor.
INSTALLATION
Install in the reverse order of removal.
