Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Front Air Mix Door Motor (Driver Side)
Remove instrument lower panel LH and steering column cover lower. Refer to Removal and Installation.
Remove driver knee air bag module. Refer to Removal and Installation.
Remove side ventilator duct 2 LH. Refer to Removal and Installation.

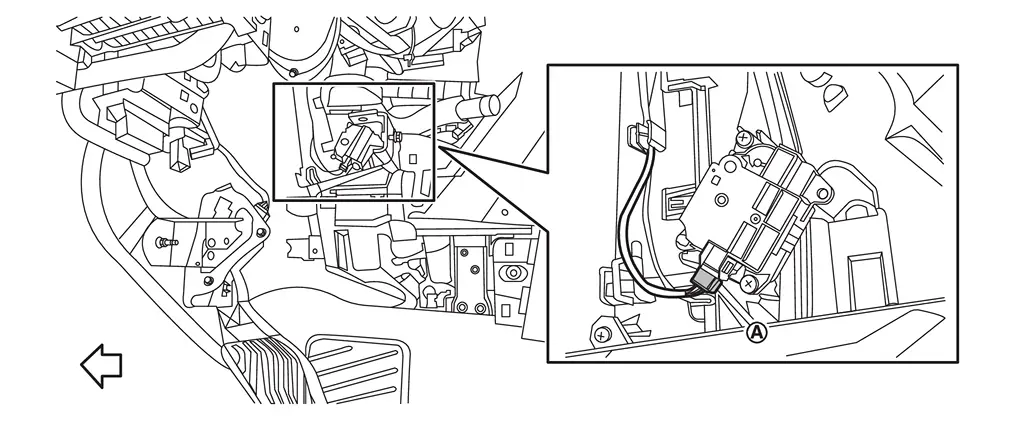

Disconnect front air mix door motor (driver side) harness connector
.
 | : Vehicle front |

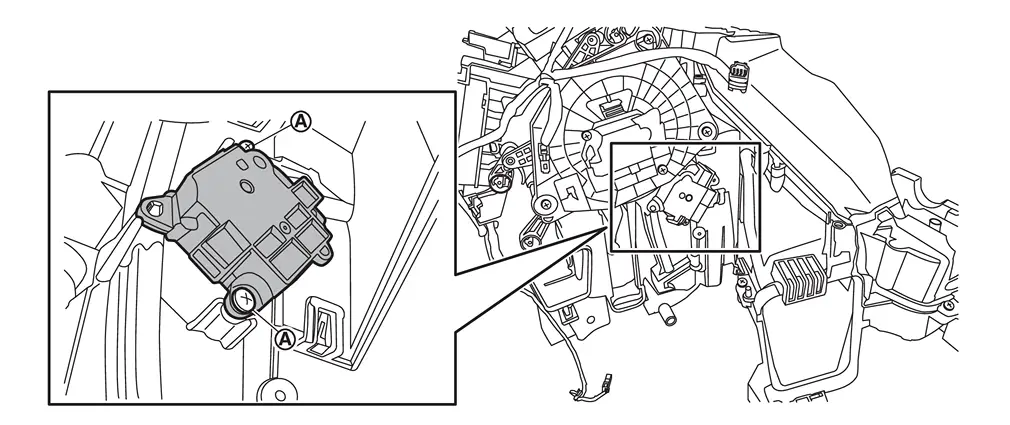

Remove fixing screws , and then remove front air mix door motor (driver side).
Front Air Mix Door Motor (Passenger Side)
Remove front heater & cooling unit assembly. Refer to Removal and Installation.
Remove front heater core. Refer to Removal and Installation.

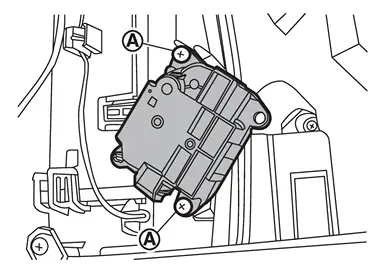

Remove fixing screws , and then remove front air mix door motor (passenger side).
INSTALLATION
Install in the reverse order of removal.
