Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
REMOVAL

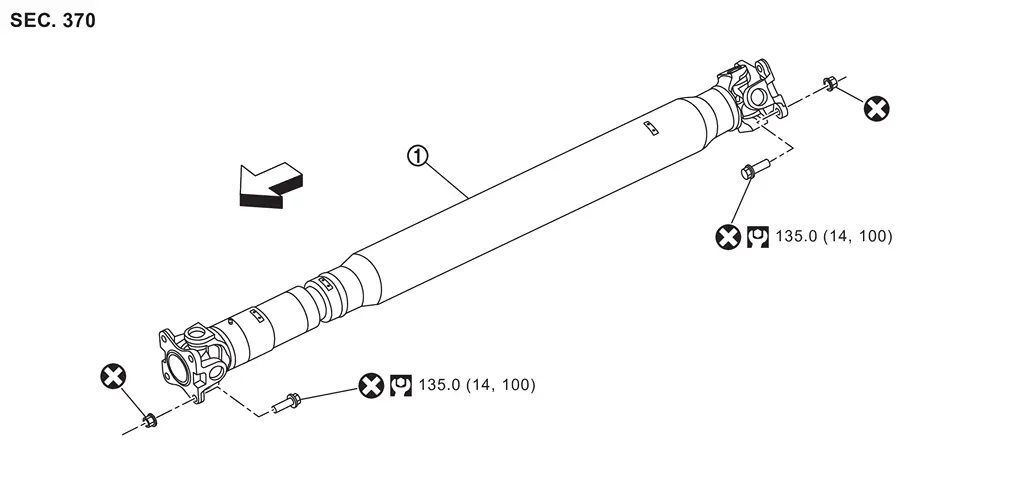

 | Propeller shaft assembly |
 : Vehicle front | |||||
 : N·m (kg-m, ft-lb) | |||||
 : Always replace after every disassembly. |
DISASSEMBLY

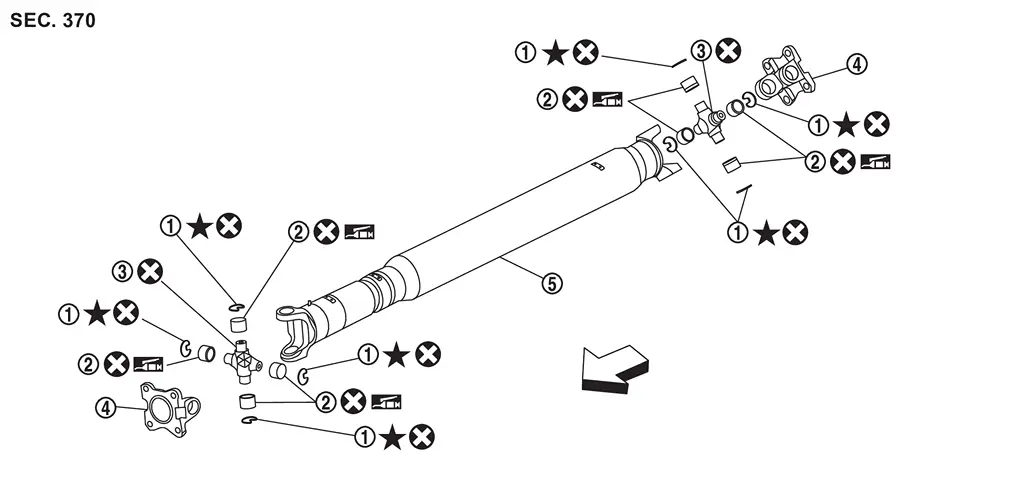

| Snap ring |  | Journal bearing |  | Journal |
 | Flange yoke |  | Propeller shaft tube |
| : Vehicle front | |||||
| : Always replace after every disassembly. | |||||
 : Select with proper thickness. | |||||
 : Apply multi-purpose grease. |
NOTE:
Replace , and as a set.
Removal and Installation
WARNING:
REMOVAL
Put matching mark on rear propeller shaft flange yoke and final drive companion flange.
CAUTION:
Put matching mark on rear propeller shaft flange yoke and transfer companion flang ...
Other materials:
Exploded View
Brake tube Brake hose Lock plate Union bolt Copper washer To front brake tube. Refer to Exploded View. : Vehicle front : N·m (kg-m, ft-lb) : N·m (kg-m, in-lb) : Always replace after every disassembly. : Indicates that the part is connected at points with same symbol in actual vehicle. ...
Adjustment
PINION GEAR HEIGHT
If the hypoid gear set has been replaced, select the pinion height adjusting washer.
Use the formula below to calculate pinion height adjusting washer thickness.
Washer selection equation: T = T0 + (t1− t2) T: Correct washer thickness T0: Removed washer thickness t1: O ...
