Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Drain engine coolant from cooling system. Refer to ENGINE COOLANT : Draining.

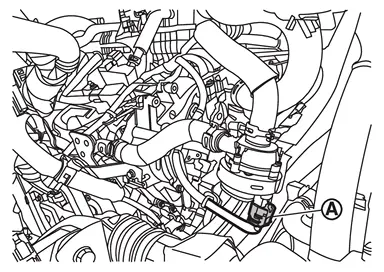

Disconnect electric water pump harness connector
.

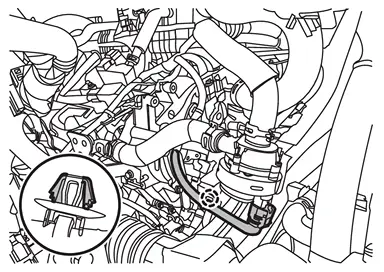

Disengage fixing clip, and then move electric water pump harness to secure work space.
 | : Clip |

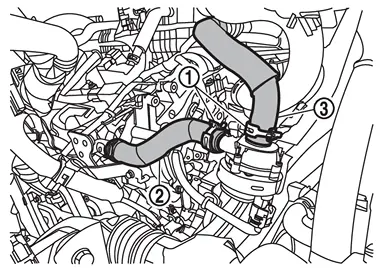

Loosen clamps
, and then disconnect water hose 3
and water hose 4
from electric water pump.

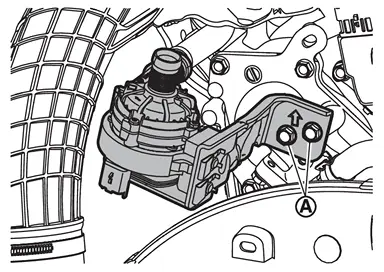

Remove mounting bolts , and then remove electric water pump assembly.

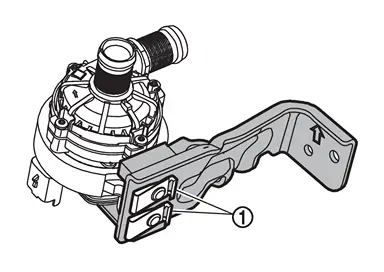

Disengage fixing clips , and then remove bracket from electric water pump.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
CAUTION:
NOTE:
When filling radiator with engine coolant. Refer to ENGINE COOLANT : Refilling.
Exploded View
Refer to Exploded View. ...
