Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation

CAUTION:

Never damage rear door panel.

REMOVAL

CAUTION:

Fully open rear door.

Remove pull handle cap.Apply protective tape (A) on rear door finisher to protect it from damage.

Remove pull handle cap using a remover tool (A).

Remove rear door finisher fixing screws .

Remove inside handle cap.Apply protective tape (A) on inside handle to protect it from damage.

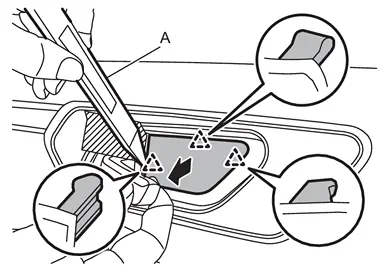

Disengage inside handle cap fixing pawls using a remover tool (A), and then remove inside handle cap.

: Pawl

Remove rear door finisher mounting bolt .

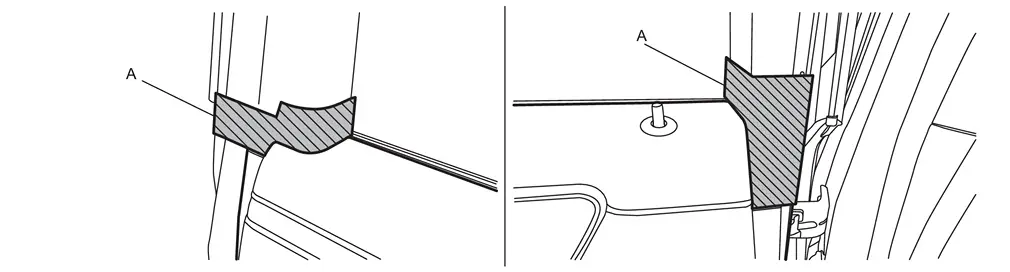

Apply protective tapes (A) on rear door sash inner cover to protect it from damage.

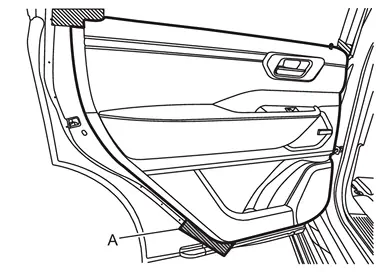

Apply protective tape (A) on rear door panel to protect it from damage.

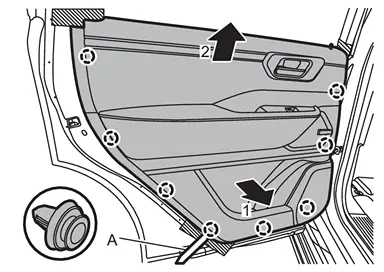

Disengage rear door finisher fixing clips using a remover tool (A) according to numerical order 1→2 indicated by arrows as shown in the figure.

CAUTION:

Insert a remover tool between rear door panel and clip to prevent damage to the parts, and then disengage clips.

: Clip

Disconnect each rear door harness connector from rear door finisher.

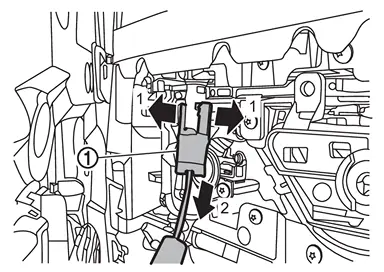

Disconnect inside handle cable from inside handle according to numerical order 1→2 indicated by arrows as shown in the figure.

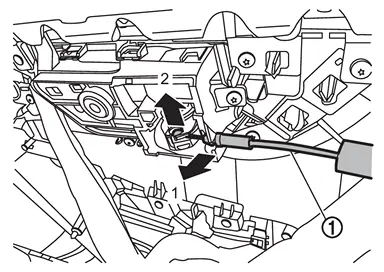

Disconnect lock knob cable from rear door finisher according to numerical order 1→2 indicated by arrows as shown in the figure, and then remove rear door finisher.

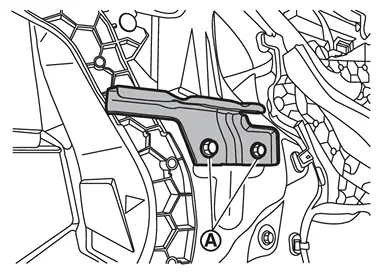

Remove pull handle bracket fixing screws , and then remove pull handle bracket.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Check in advance that clips are accurately aligned with the portions on rear door panel, and then install by pressing in.

• Tighten rear door finisher mounting bolt to the specified torque. Refer to Exploded View (rear door inside handle part).
