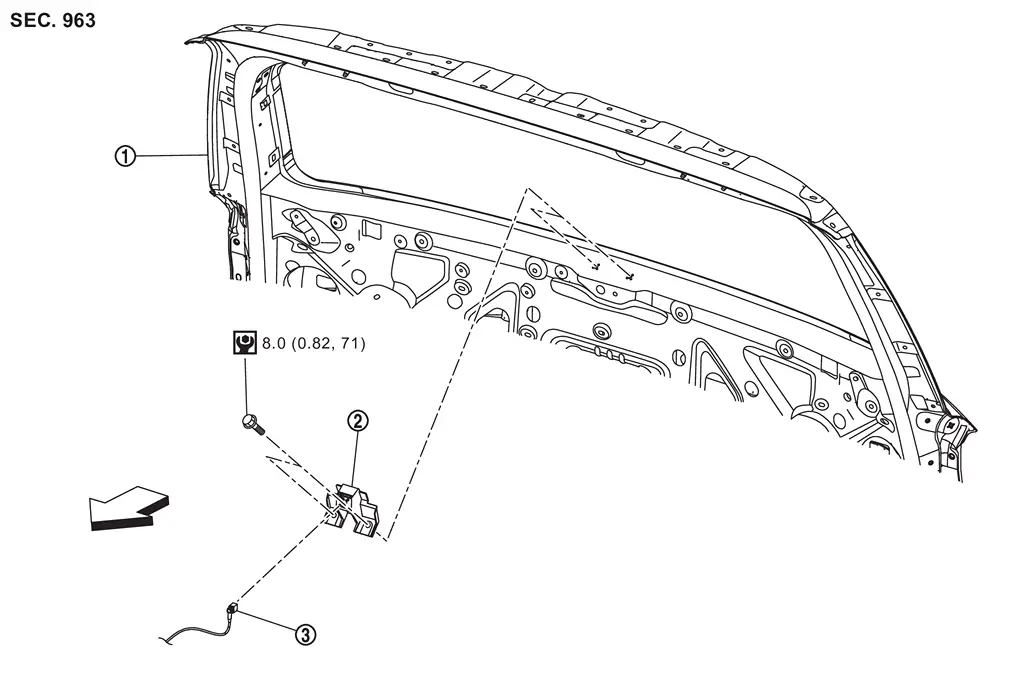

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Intelligent Rear View Mirror Camera

...

Removal and Installation

REMOVAL Remove back door inner finisher. Refer to Removal and Installation. Disconnect intelligent rear view mirror camera harness connector . Disengage intelligent rear view mirror camera mounting ...
