Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never damage the body panel.
REMOVAL
CAUTION:
Remove rear pillar finisher. Refer to Removal and Installation.
Remove back pillar garnish. Refer to Removal and Installation.
Apply protective tape (A) on luggage side upper finisher to protect it from damage.
 | : Vehicle front |
Disengage bolt cap fixing pawls using a remover tool (A), and then remove bolt cap.
 | : Pawl |
| : Vehicle front |
Remove luggage side upper finisher mounting bolt.

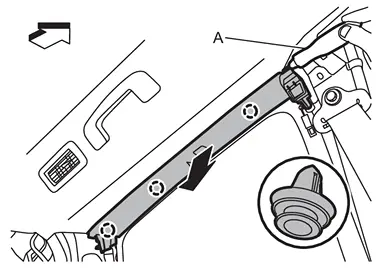

Disengage luggage side upper finisher fixing clips using a remover tool (A), and then remove luggage side upper finisher.
 | : Clip |
| : Vehicle front |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
