Nissan Armada 2025-2026 Owner's Manual: Seats, seat belts and Supplemental Restraint System (SRS)
Example

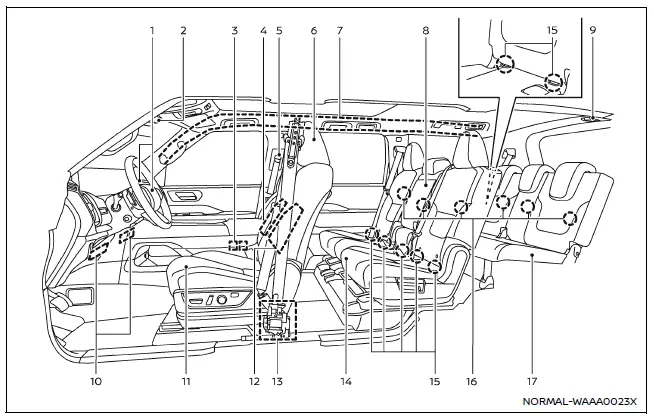

This illustrated section of the Nissan Armada manual provides a comprehensive overview of critical safety systems, including advanced Supplemental Restraint System (SRS) components designed to enhance passenger protection in various driving conditions. Understanding these elements ensures safer operation of the Nissan Armada and helps drivers fully utilize built-in safety technologies.
- Supplemental front-impact air bags
- Front passenger air bag status light
- Occupant classification sensors (weight sensors)
- Front central seat-mounted side-impact supplemental air bag*
- Seat belts
- Head restraints/headrests
- Roof-mounted curtain side-impact and rollover supplemental air bags
- Armrest (2nd row bench seat)*
- Seat belt for 3rd row center seat
- Driver and front passenger supplemental knee air bags
- Front seats
- Front seat-mounted side-impact supplemental air bags
- Seat belt pretensioners
- 2nd row seats
- Child restraints
- LATCH (Lower Anchors and Tethers for Children) system (for 2nd row and 3rd row right outboard seats)
- Child restraint anchor points (for top tether strap)
- 3rd row seats
- Child restraints
*: if so equipped
