Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never damage the body panel.
REMOVAL
CAUTION:
Remove roof rear garnish. Refer to Removal and Installation.
Release back pillar garnish portion of back door weather-strip. Refer to Removal and Installation.
Remove luggage side lower finisher. Refer to Removal and Installation.
Apply protective tape (A) on back pillar garnish to protect it from damage.
Disengage seat belt finisher fixing pawls using a remover tool (A), and then remove seat belt finisher.
 | : Pawl |
Remove back pillar garnish mounting bolt.

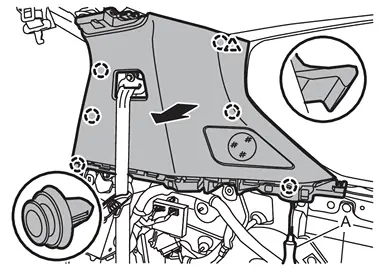

Disengage back pillar garnish fixing clips and pawl using a remover tool (A), and then remove back pillar garnish.
 | : Clip |
| : Pawl |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Check in advance that clips and pawl are accurately aligned with the portions on body panel, and then install by pressing in.
