Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Operate rear wiper to the service position. Refer to System Description.
Lift up rear wiper arm, and then lock back rear wiper arm.

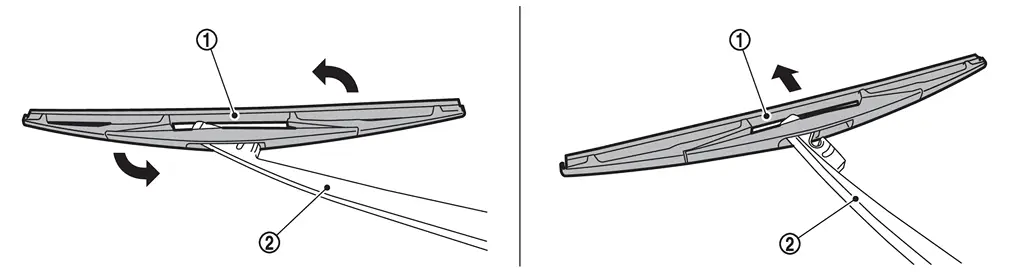

Remove rear wiper blade
from rear wiper arm
while rotating rear wiper blade in the direction indicated by the arrows as shown in the figure.
CAUTION:
After rear wiper blade is removed, wrap rear wiper arm with a shop cloth and fold it down so that rear wiper arm does not fall against and damage back door window glass.
INSTALLATION
Install in the reverse order of removal.
Rear Wiper Blade
...
Rear Wiper Motor
...
