Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Remove the door mirror finisher. Refer to Disassembly and Assembly.

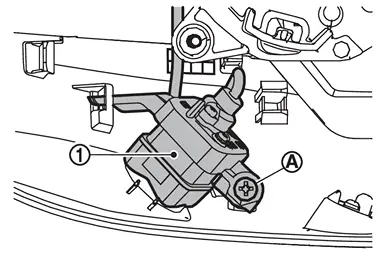

Remove the side camera mounting screw
, and then remove the side camera
.
INSTALLATION
Install in the reverse order of removal.
Perform parameter writing. (With ProPILOT Assist 2.1) Refer to Work Procedure.
Perform camera image calibration. Refer to Work Procedure.
CAUTION:
Side Camera
...
