Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never damage the back door panel.
REMOVAL
CAUTION:
Fully open back door.
Apply protective tape (A) on back door panel to protect it from damage.

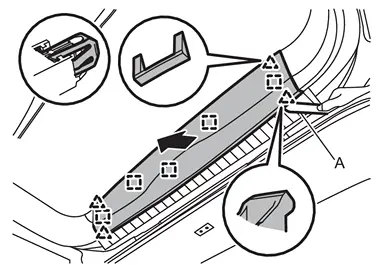

Disengage back door upper garnish fixing pawls and metal clips using a remover tool (A), and then remove back door upper garnish.
 | : Pawl |
 | : Metal clip |
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Visually check metal clips for deformation and damage during installation. Replace with new ones if necessary.
Check in advance that pawls and metal clips are accurately aligned with the portions on back door panel, and then install by pressing in.
