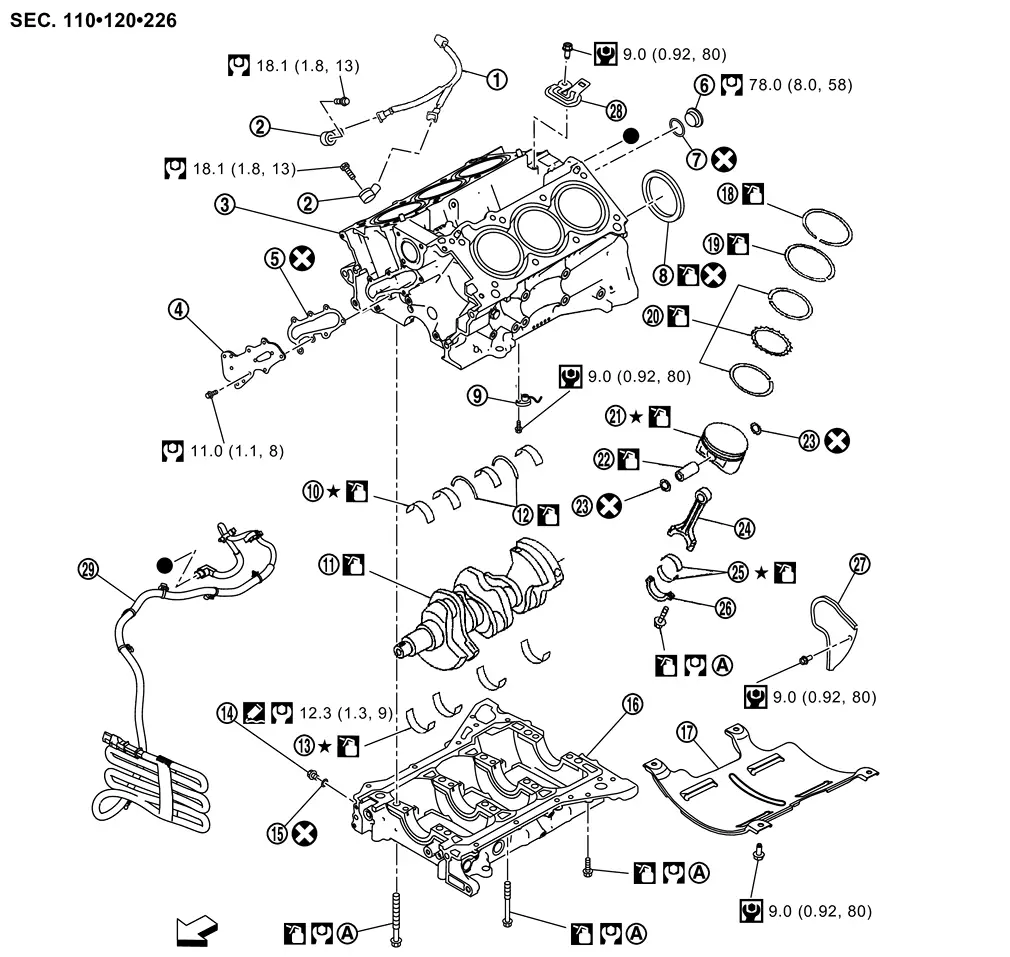

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Sub harness |  | Knock sensor |  | Cylinder block |
 | Oil gallery cover |  | Gasket |  | Plug |
 | O-ring |  | Rear oil seal |  | Oil jet |
 | Main bearing (upper) |  | Crankshaft |  | Thrust bearing |
 | Main bearing (lower) |  | Plug |  | Gasket |
 | Lower cylinder block |  | Baffle plate |  | Top ring |
 | Second ring |  | Oil ring |  | Piston |
 | Piston pin |  | Snap ring |  | Connecting rod |
 | Connecting rod bearing |  | Connecting rod bearing cap |  | Rear plate cover |
 | Sub harness bracket |  | Cylinder block heater (for Canada) | ||
 | Comply with the assembly procedure when tightening. Refer to Disassembly and Assembly. | ||||
 | : Engine front | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : N·m (kg-m, in-lb) | ||||
 | : Always replace after every disassembly. | ||||
 | : Should be lubricated with oil. | ||||
 | : Sealing point | ||||
 | : Select with proper thickness. | ||||
 | : Indicates that the parts is connected at points with same symbols in actual vehicle. | ||||
Cylinder Block
...
Disassembly and Assembly
DISASSEMBLY
Remove the following parts:
Oil pan (lower): Refer to Removal and Installation.
Oil pan (upper): Refer to Disassembly and Assembly.
Timing chain: Refer to Removal and Installation.
Cylin ...
