Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL

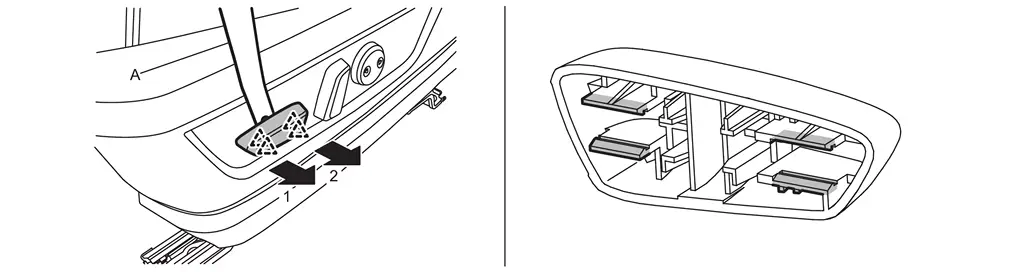

Disengage fixing pawls using a remover tool (A) according to numerical order 1 → 2 indicated by arrows as shown in figure, and then remove sliding switch knob.
 | : Pawl |

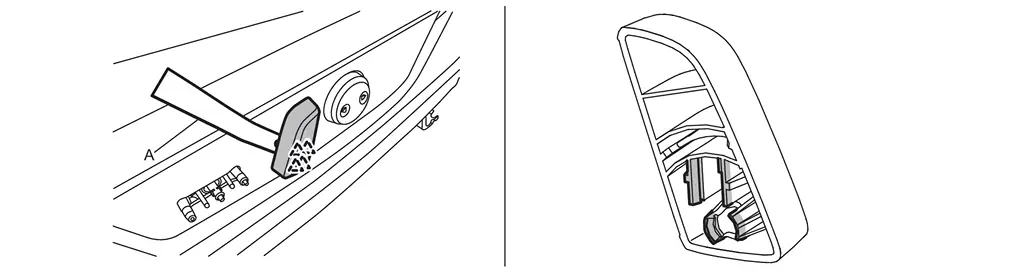

Disengage fixing pawls using a remover tool (A), and then remove reclining switch knob.
| : Pawl |
Remove outside seat cushion finisher outer. Refer to Disassembly and Assembly.
Remove power seat switch fixing screws
and then remove power seat switch.
INSTALLATION
Install in the reverse order of removal.
