Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
REMOVAL
Remove driver knee air bag module mounting bolts, and then move driver knee air bag module to secure workspace. Refer to Removal and Installation.
Disconnect harness connector.

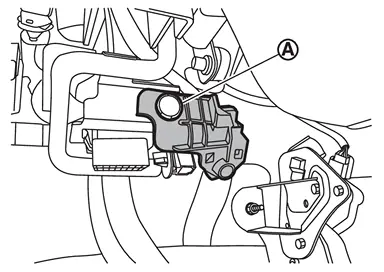

Remove fixing clip
, and then remove front foot lamp bracket (LH).
Disengage front foot lamp (LH) fixing pawls using a remover tool (A), and then remove front foot lamp (LH).
 | : Pawl |
INSTALLATION
Install in the reverse order of removal.
Replacement
CAUTION:
Replacement of bulb is not possible due to the adoption of LED. When replacement, replace front foot lamp (LH) as a single part. Refer to Removal and Installation.
...
