Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Disconnect driver seat control unit connector.

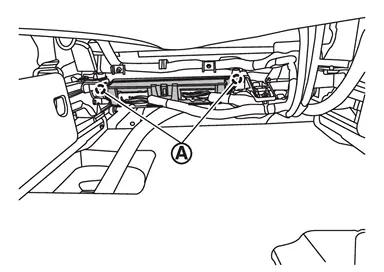

Remove driver seat control unit mounting screws
.
Remove driver seat control unit.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
CAUTION:
Be sure to perform ADDITIONAL SERVICE WHEN REPLACING DRIVER SEAT CONTROL UNIT when replacing driver seat control unit. Or not doing so, driver seat control unit control function does not operate normally. Refer to Description.
