Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL

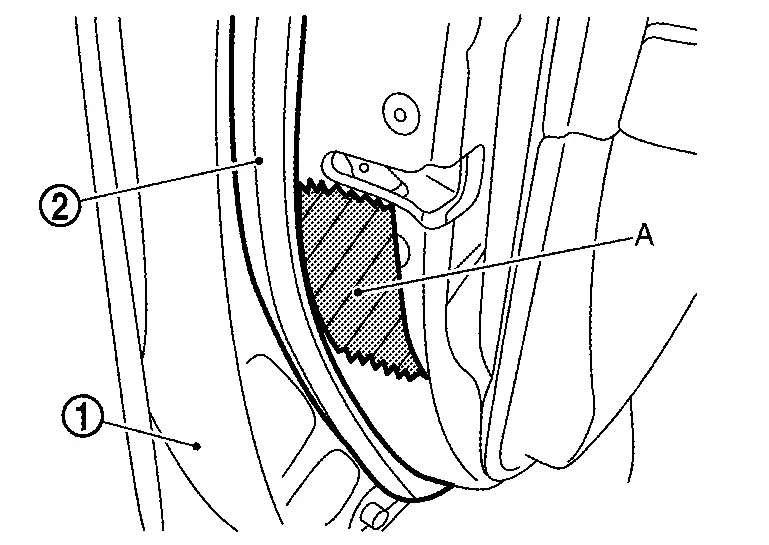

Apply protective tape (A) to front door panel
around front door weather-strip
fixing clips for preventing damage.

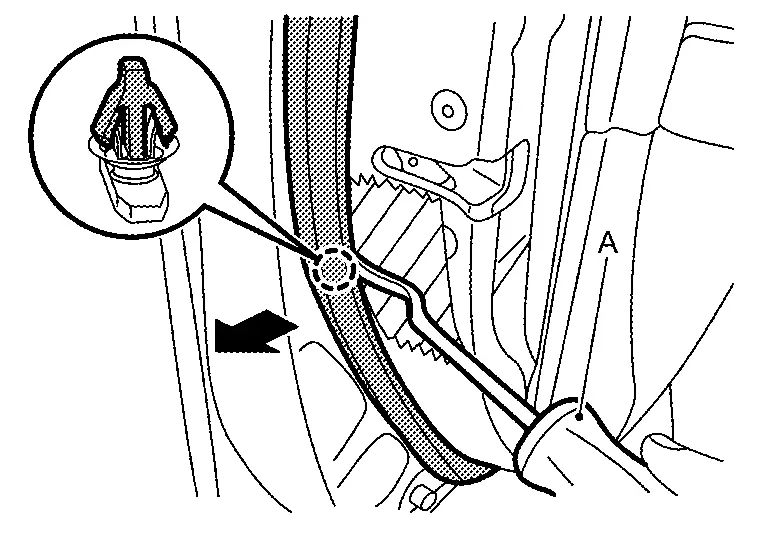

Disengage fixing clips on the reverse side of front door weather-strip using a remover tool (A).
 | : Clip |
CAUTION:
Never damage front door panel.

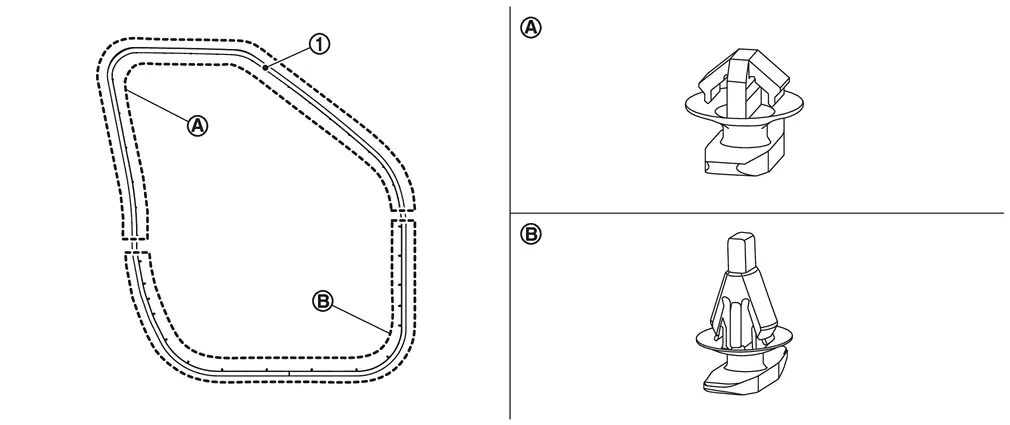

When removing, never confuse the 2 types of front door weather-strip
fixing clips
and
.
Remove front door check link mounting bolt of vehicle body side.
Remove front door weather-strip from front door panel.
INSTALLATION
Install in the reverse order of removal.
