Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL

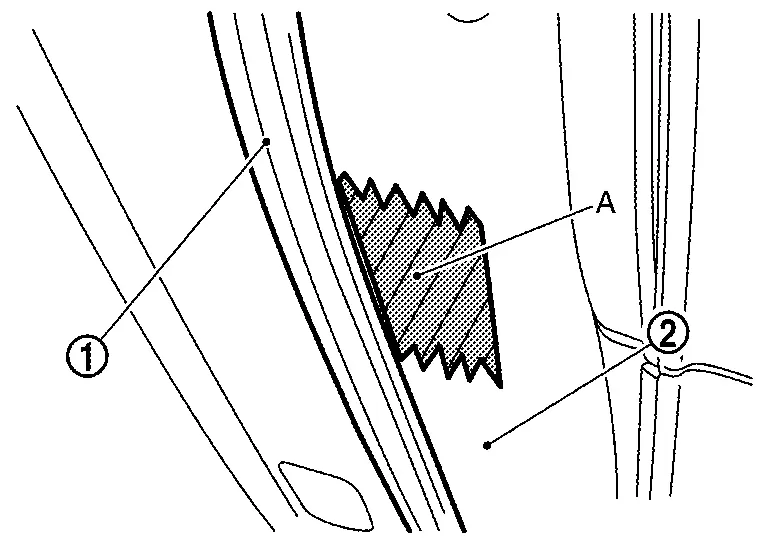

Apply protective tape (A) to rear door panel
around rear door weather-strip
fixing clips for preventing damage.

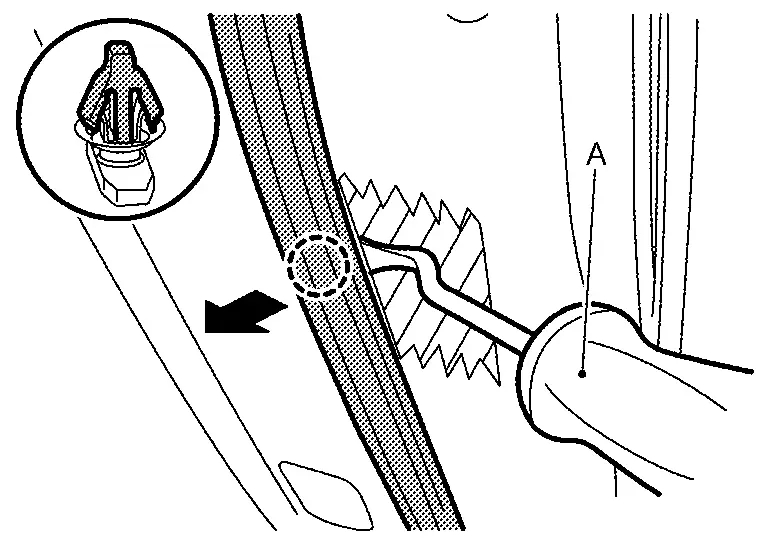

Disengage fixing clips on the reverse side of rear door weather-strip using a remover tool (A).
 | : Clip |
CAUTION:
Never damage rear door panel.

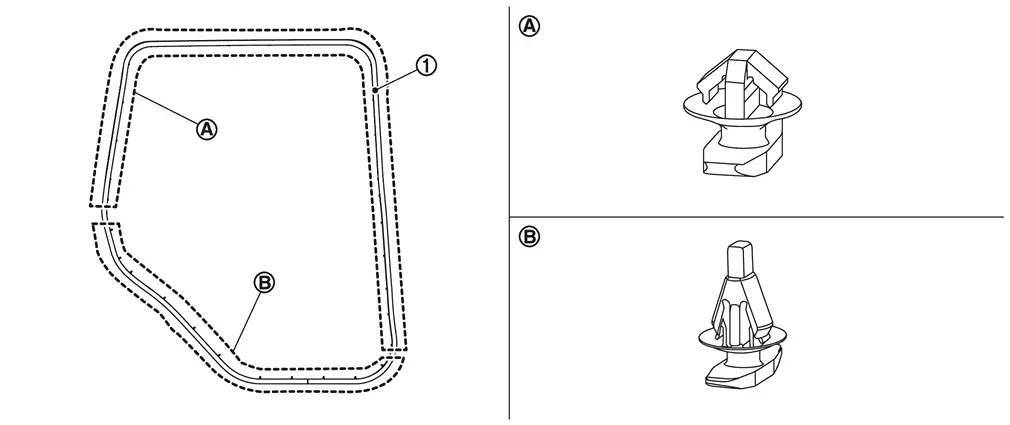

When removing, never confuse the 2 types of rear door weather-strip
fixing clips
and
.
Remove rear door check link mounting bolt of vehicle body side.
Remove rear door weather-strip from rear door panel.
INSTALLATION
Install in the reverse order of removal.
