Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
CAUTION:
When replacing the Intelligent Key unit, always replace it with a new one. The functions controlled by the Intelligent Key unit does not operate properly in case of reuse of the Intelligent Key unit from another vehicle.
Remove luggage side lower finisher LH. Refer to Removal and Installation.

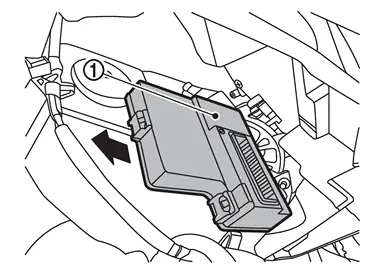

Disconnect Intelligent Key unit harness connector, and then remove Intelligent Key unit
.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Be sure to perform ADDITIONAL SERVICE WHEN REPLACING INTELLIGENT KEY UNIT when replacing Intelligent Key unit. Or not doing so, Intelligent Key unit control function does not operate normally. Refer to Description.
