Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
Never bend the fixing pawl of front armrest LH.
REMOVAL
Remove front door finisher LH. Refer to Removal and Installation.
Disconnect power window main switch harness connector and door lock and unlock switch harness connector.
Remove front door squawker LH from front door finisher LH (if equipped). Refer to Removal & Installation.

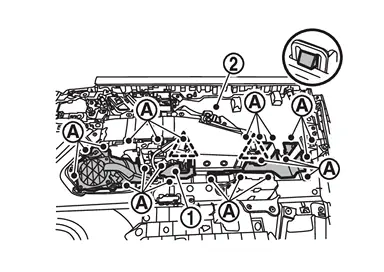

Remove front armrest LH fixing screws
, and then remove front armrest LH
from front door finisher LH
.
 | : Pawl |

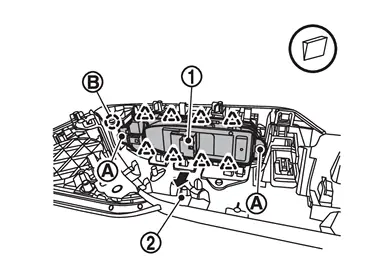

Remove power window main switch fixing screws , and then remove power window main switch from front armrest LH .
| : Pawl |
NOTE:
Remove front armrest LH fixing part
and secure the work space.
INSTALLATION
Install in the reverse order of removal.
