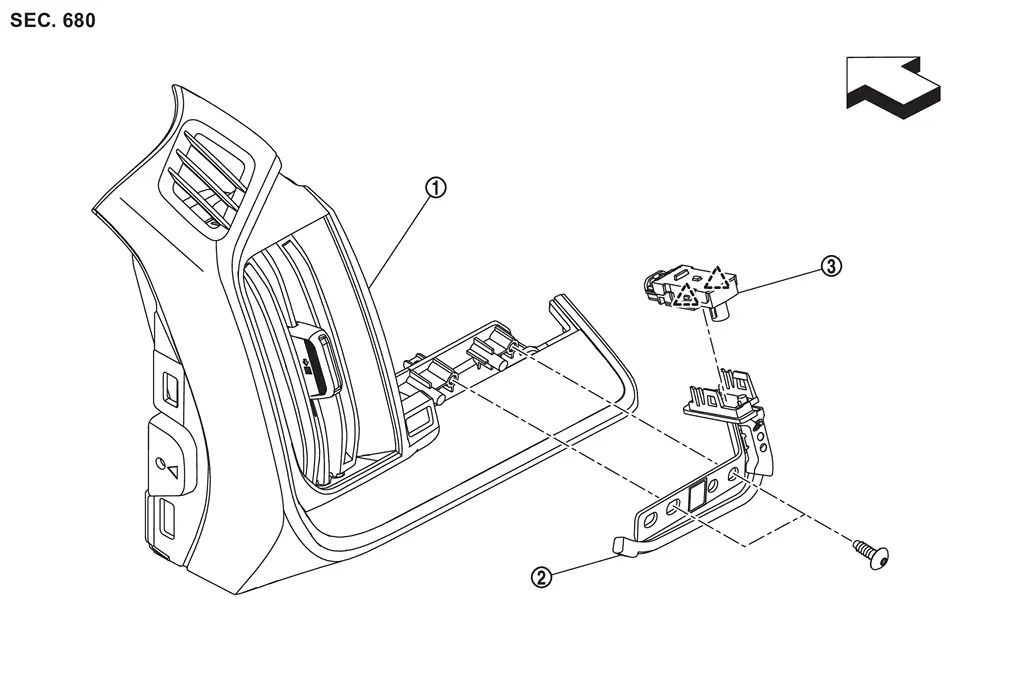

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View
 | Instrument finisher A |  | Indirect light LH |  | Advanced ambient light (instrument panel driver side) |
 | : Pawl | ||||
 | : Vehicle front | ||||
Removal and Installation
CAUTION:
REMOVAL
Remove instrument pad A. Refer to Removal and Installation.
Remove indirect light LH fixing screws .
Disconnect harness connector, and then remove indirect light LH.
Disengage advan ...
