Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
WARNING:
REMOVAL

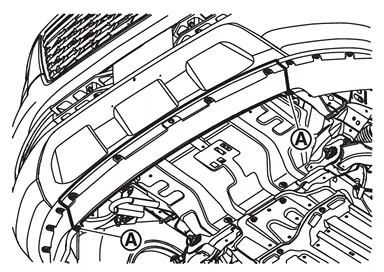

Remove fixing rivets
.
NOTE:
Grind rivet with a drill (B) [bit of φ4.7 − φ4.9 mm (φ0.185 − φ0.193 in)].

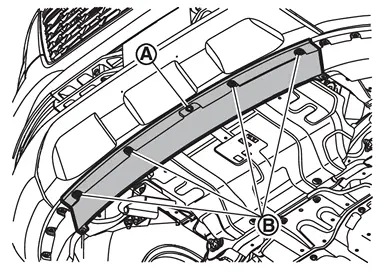

Remove fixing clip and mounting bolts
, and then remove front spoiler.

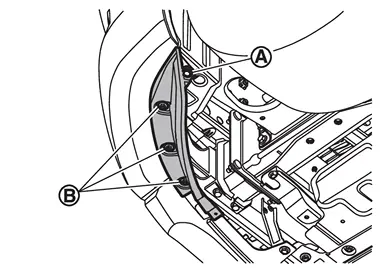

Remove fixing clip and mounting bolts , and then remove front side spoiler.
Remove U nuts from front bumper fascia assembly.
INSTALLATION
Note the following item, and then install in the reverse order of removal.
NOTE:
Securely crimp rivet with a hand riveter (A).
Exploded View
Front bumper fascia assembly U nut Front side spoiler RH Front spoiler Front side spoiler LH : Rivet : Always replace after every disassembly. ...
