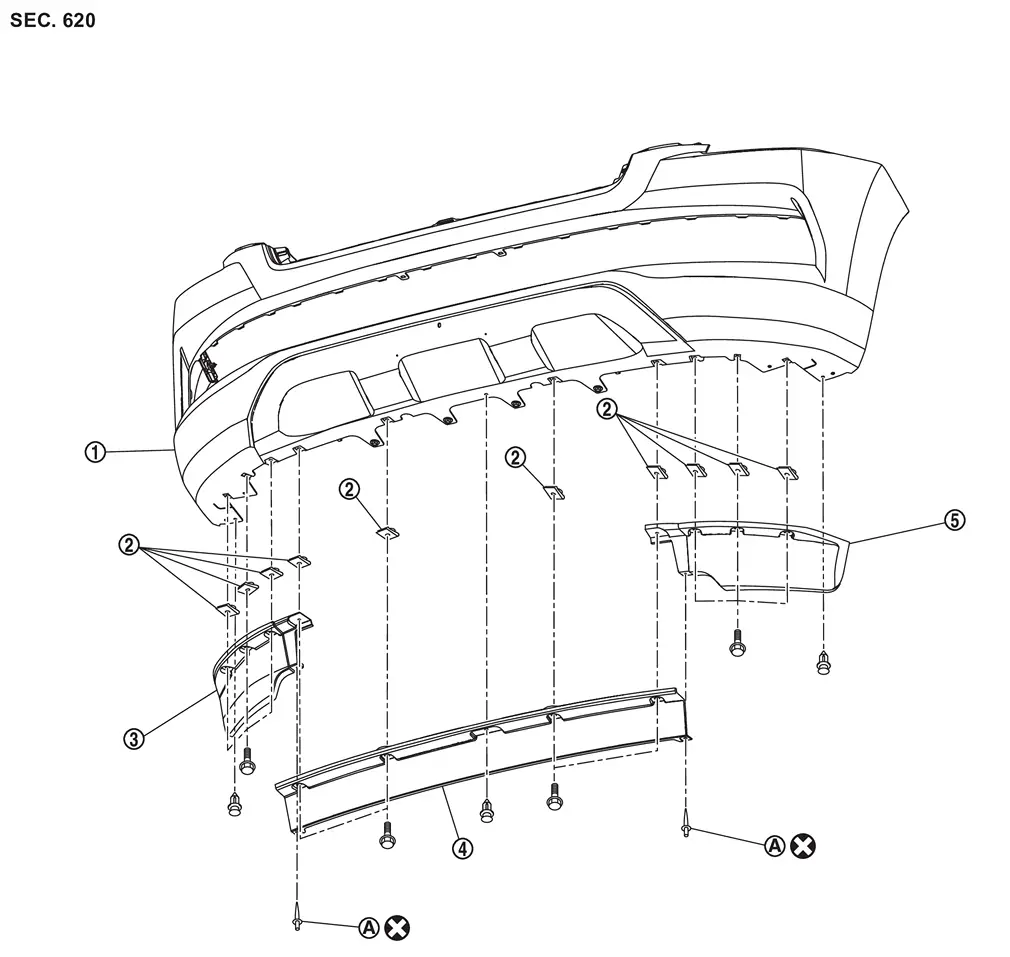

Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

Front Spoiler

...

Removal and Installation

WARNING: REMOVAL Remove fixing rivets . NOTE: Grind rivet with a drill (B) [bit of φ4.7 − φ4.9 mm (φ0.185 − φ0.193 in)]. Remove fixing clip and mounting bolts , and then remove front sp ...
