Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
CAUTION:
REMOVAL
Remove door mirror finisher. Refer to Disassembly and Assembly.
Remove side camera (if equipped). Refer to Removal and Installation.

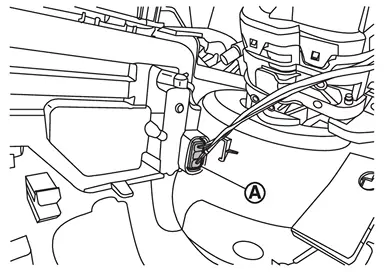

Disconnect side turn signal lamp harness connector
.

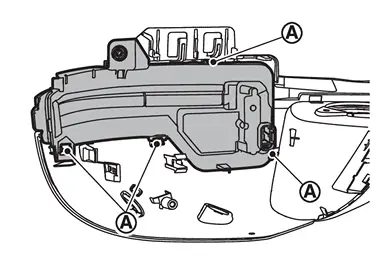

Remove side turn signal lamp fixing pawls , and then remove side turn signal lamp.
INSTALLATION
Install in the reverse order of removal.
Exploded View
For exploded view of side turn signal lamp, refer to Exploded View. ...
Replacement
CAUTION:
SIDE TURN SIGNAL LAMP
CAUTION:
Replacement of a single part is not possible due to the adoption of LED. For replacement, replace side turn signal lamp as a set. Refer to Removal and Installat ...
