Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Disconnect the battery cable from the negative terminal. Refer to Exploded View.
CAUTION:
To prevent damage to the parts, disconnect the battery cable from the negative terminal first.
Remove the battery positive terminal cover.

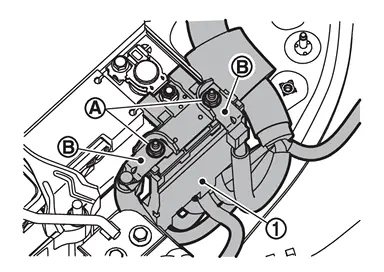

Remove positive cable mounting nuts
, and then disconnect the positive cables
from the battery terminal with fusible link
.

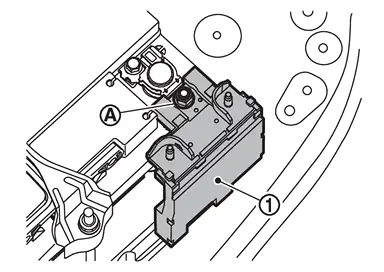

Remove battery terminal with fusible link mounting nut , and then remove the battery terminal with fusible link .
Remove cable mounting nuts , and then disconnect the cable ,
,
,
,
and
from the battery terminal with fusible link .
| Red | | Blue | | Brown |
| Green | | White | | Gray* |
| *: Without ProPILOT ASSIST 2.1 | |||||
INSTALLATION
Install in the reverse order of removal.
CAUTION:
To prevent damage to the parts, connect the battery cable to the positive terminal first.

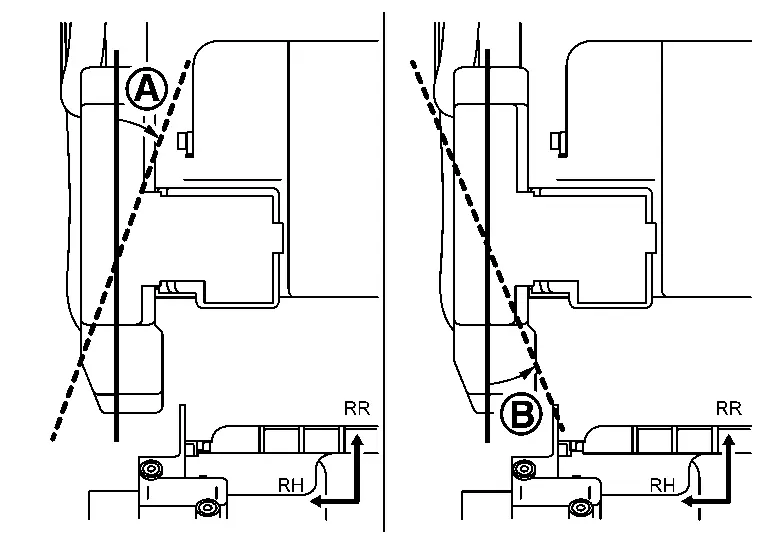

When installing battery terminal with fusible link cover, do not install it in the direction of
. Installing it in the direction of is acceptable.
Exploded View
Without ProPILOT ASSIST 2.1
Battery fix frame Battery cover Negative cable Battery current sensor 12V battery Battery fix rod Battery fix rod clip Battery tray Battery positive terminal Bat ...
