Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

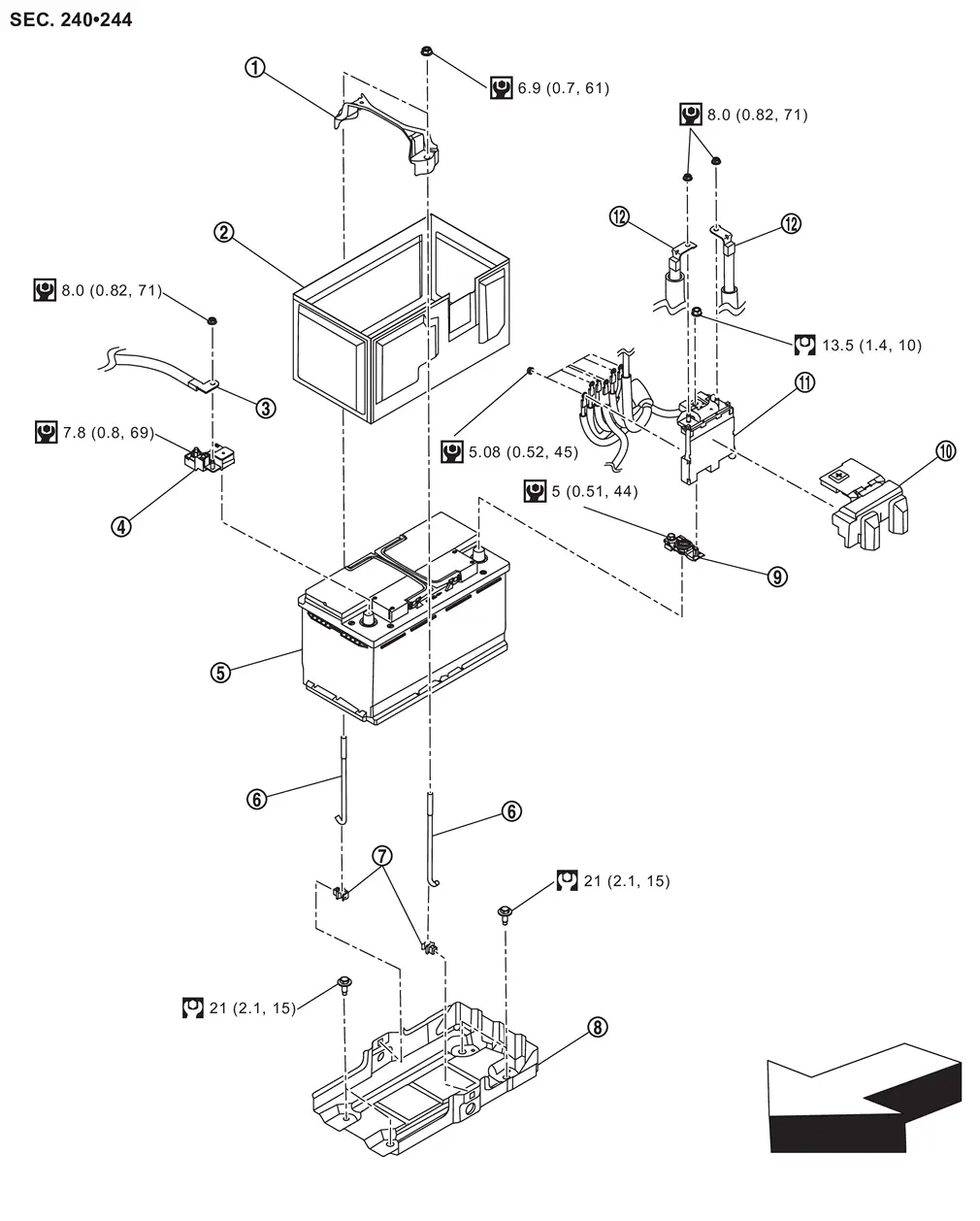

Without ProPILOT ASSIST 2.1
 | Battery fix frame |  | Battery cover |  | Negative cable |
 | Battery current sensor |  | 12V battery |  | Battery fix rod |
 | Battery fix rod clip |  | Battery tray |  | Battery positive terminal |
 | Battery positive terminal cover |  | Battery terminal with fusible link |  | Positive cable |
 | : N·m (kg-m, in-lb) | ||||
 | : N·m (kg-m, ft-lb) | ||||
 | : Vehicle front |

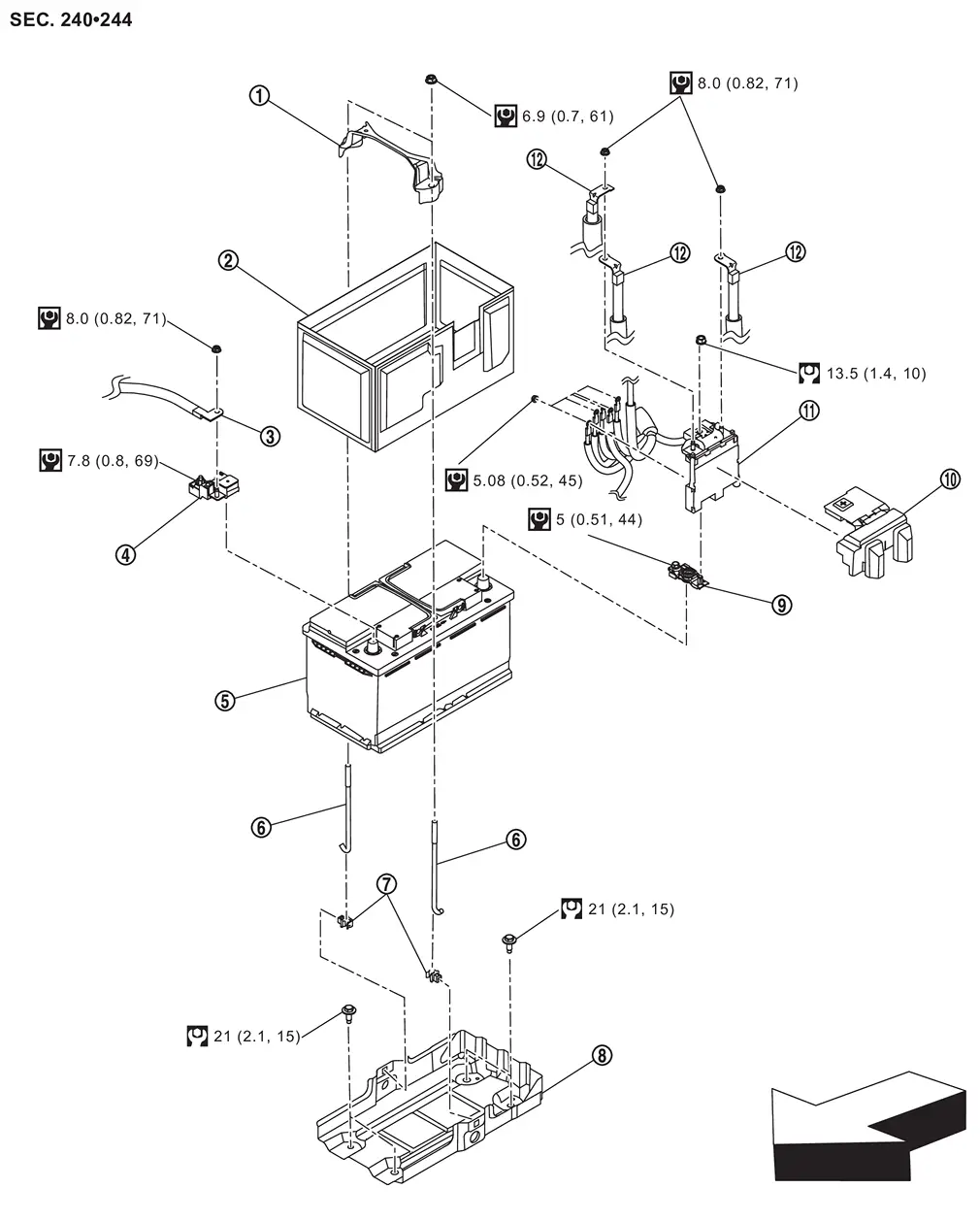

With ProPILOT ASSIST 2.1
| Battery fix frame | | Battery cover | | Negative cable |
| Battery current sensor | | 12V battery | | Battery fix rod |
| Battery fix rod clip | | Battery tray | | Battery positive terminal |
| Battery positive terminal cover | | Battery terminal with fusible link | | Positive cable |
| : N·m (kg-m, in-lb) | ||||
| : N·m (kg-m, ft-lb) | ||||
| : Vehicle front |
Removal and Installation
REMOVAL
Disconnect the battery cable from the negative terminal. Refer to Exploded View.
CAUTION:
To prevent damage to the parts, disconnect the battery cable from the negative terminal first.
Remove ...
