Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation
REMOVAL
Disconnect the battery cable from the negative terminal.
Remove display unit display unit finisher RH and LH. Refer to Removal and Installation.
Remove display unit cover. Refer to Removal and Installation.

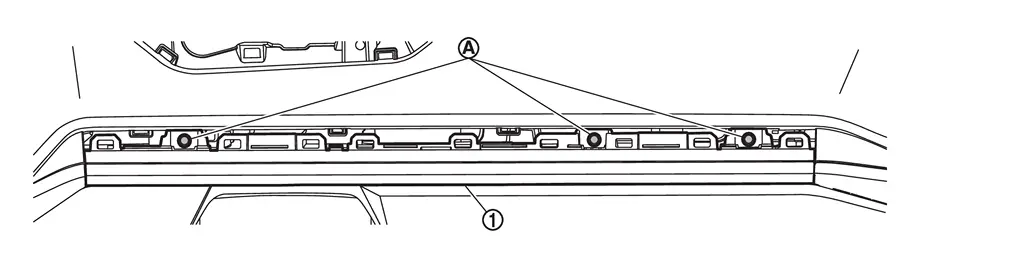

Remove the mounting screws
of the display unit
.
Pull the display unit upward, then disconnect harness connectors and remove.
CAUTION:
Never damage the display unit.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
When replacing the display unit, always replace it with a new one. The functions controlled by the display unit does not operate properly in case of reuse of the display unit from another vehicle.
Be sure to perform the configuration when replacing display unit. Refer to Work Procedure.
Display Unit
...
Meter Speaker
...
