Nissan Armada 2025-2026 Service and Repair Manual: Exploded View

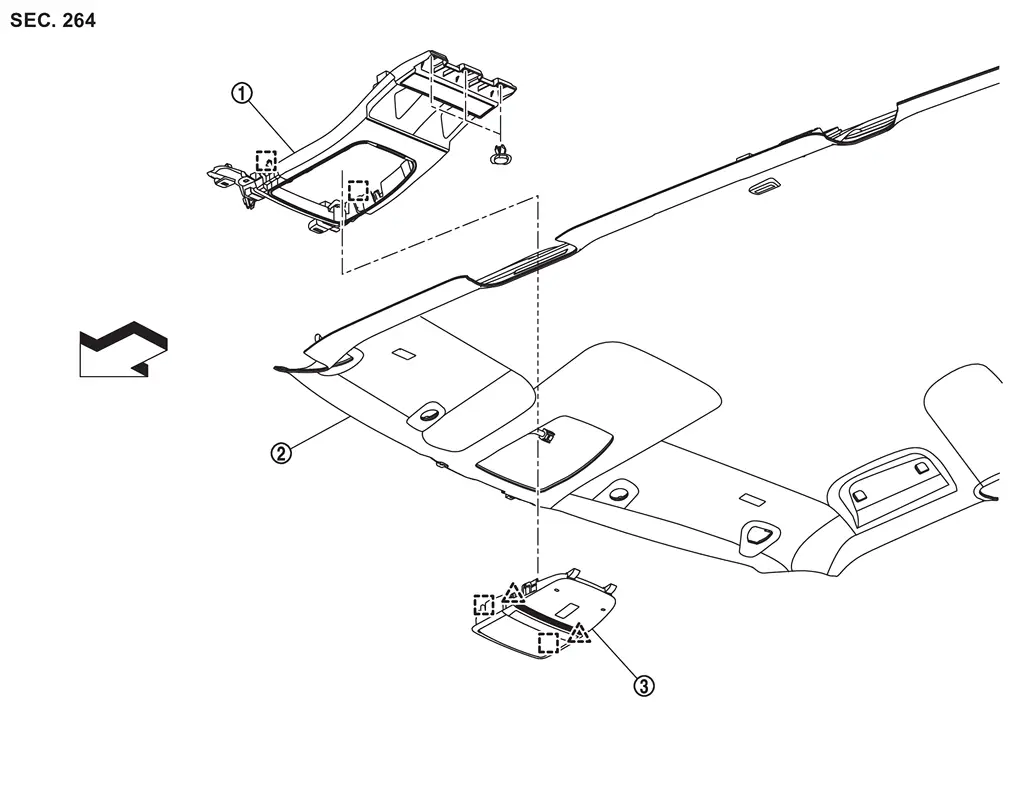

Without Moonroof Models
 | Map lamp bracket |  | Headlining assembly |  | Map lamp assembly |
 | : Pawl | ||||
 | : Metal clip | ||||
 | : Vehicle front | ||||

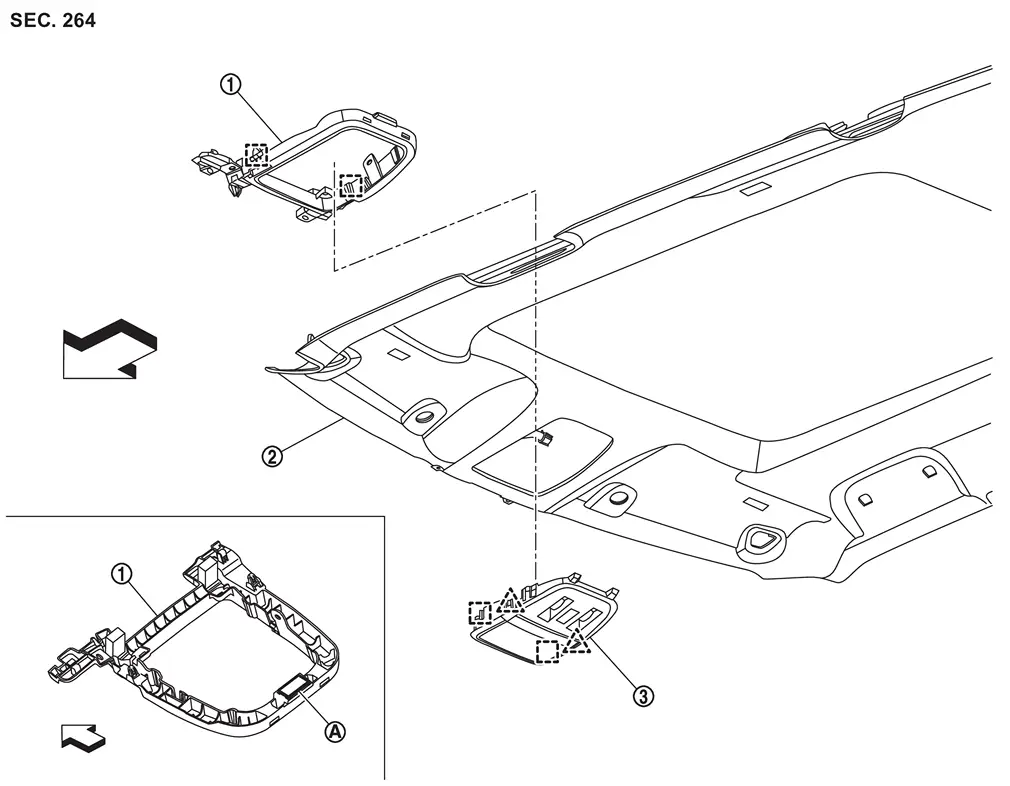

With Moonroof Models
| Map lamp bracket | | Headlining assembly | | Map lamp assembly |
 | Dual-lock fastener | ||||
| : Pawl | ||||
| : Metal clip | ||||
| : Vehicle front | ||||
Map Lamp
...
Map Lamp
...
