Nissan Armada 2025-2026 Service and Repair Manual: Repair by Heating

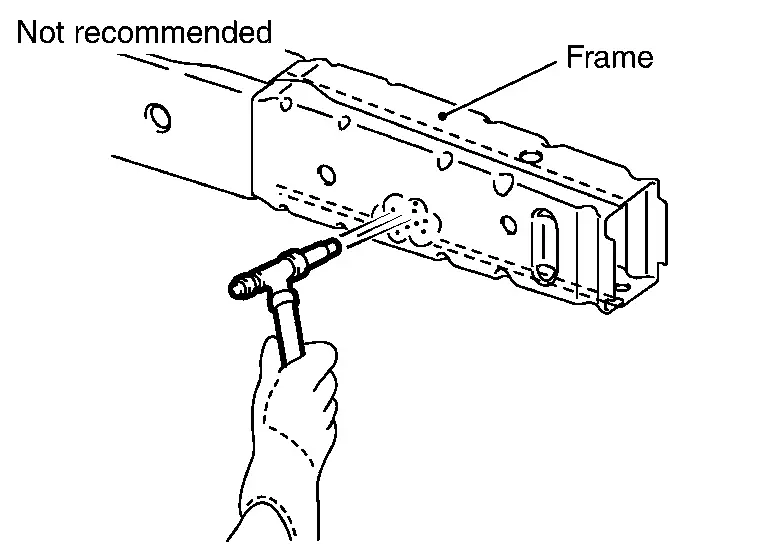

The repair of a damaged frame by heating is not recommended since it may weaken the component. When heating is unavoidable, do not heat HSS parts above 550°C (1,022°F). Verify heating temperature with a thermometer. (Crayon type and other similar type thermometers are appropriate.)
Checking Damage
The most important point in damaged frame repair is to accurately identify the deformation status of a damaged frame by using an appropriate measurement method.
This manual describes appropriate meas ...
Frame Securing Method
To straighten a damaged frame, the frame must be anchored securely. This manual describes examples of appropriate frame anchoring for each type of straightening equipment as well as additional anchori ...
