Nissan Armada 2025-2026 Service and Repair Manual: Securing the Vehicle

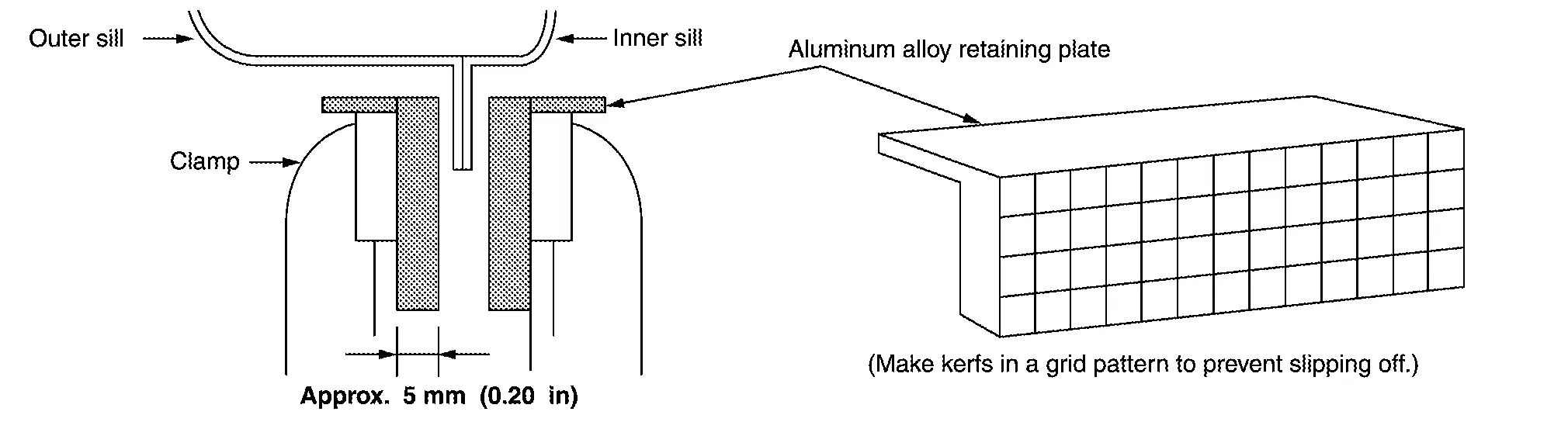

When fixing the aluminum body to the body straightening equipment, set an aluminum alloy retaining plate [thickness: approximately 5 mm (0.20 in)] in the clamp to prevent sill flange damage.
Frame Straightening
Buckling portions have been work hardened. When straightening frames, straighten by pulling out while heating with oxy-acetylene gas welder. Unlike steel plates, aluminum alloy does not change color e ...
