Nissan Armada 2025-2026 Service and Repair Manual: Removal and Installation

Nissan Armada 2025-2026 Service and Repair Manual / Body Interior / Interior — Removal and Installation / Floor Trim / Removal and Installation

CAUTION:

Never damage the body panel.

REMOVAL

Remove seat.Remove front seat assembly (LH and RH). Refer to Removal and Installation. Remove second seat assembly (LH and RH).

Captain seat: Refer to Removal and Installation.
Bench seat: Refer to Removal and Installation.

Remove rear floor carpet. Refer to Removal & Installation.

Remove dash side finisher (LH and RH). Refer to Removal and Installation.

Remove center pillar lower garnish (LH and RH). Refer to Removal and Installation.

Remove console.Remove front center console assembly. Refer to Removal and Installation. Remove front center console brackets. Remove rear center console assembly (if equipped). Refer to Removal and Installation.

Remove steering member stay LH. Refer to Removal and Installation.

Remove rear floor duct 1 (LH and RH). Refer to Removal and Installation.

Disconnect each harness connector, and then remove body harness fixing clips and each control unit to vehicle body center side.

Remove front floor carpet.

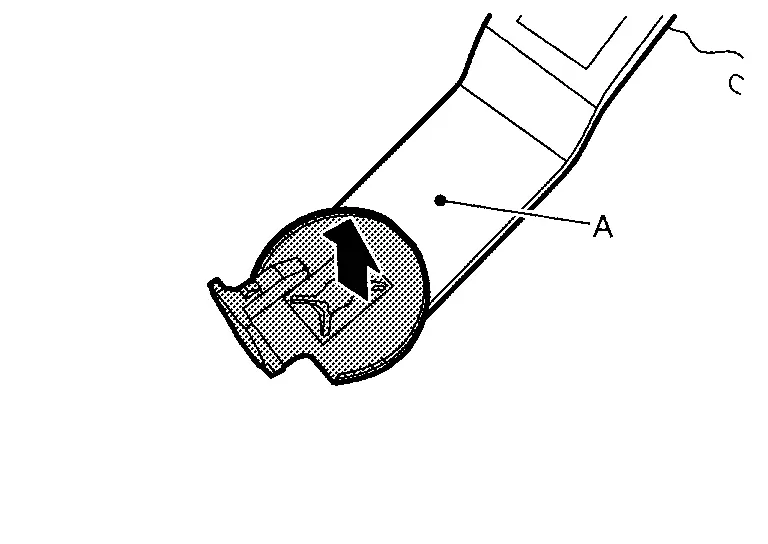

Remove carpet hook.Disengage base fixing pawls using a remover tool (A), and then unlock.

: Pawl

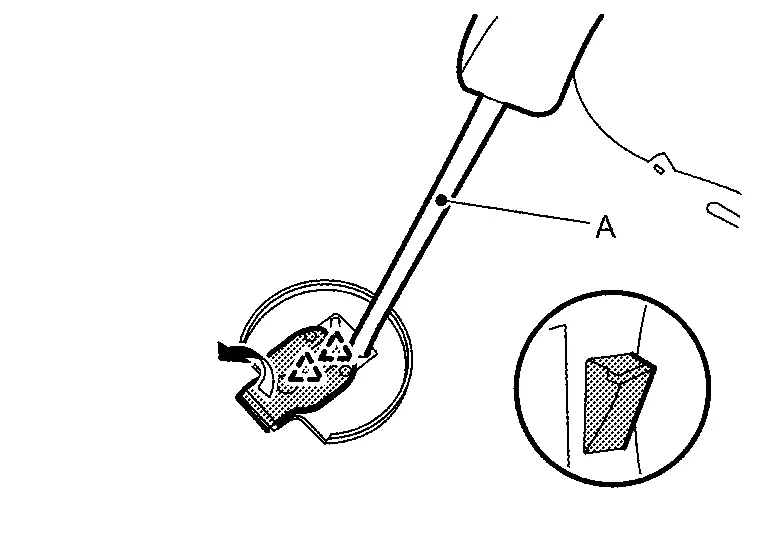

Remove base using a remover tool (A), and then remove carpet hook.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:

Check in advance that pawls are accurately aligned with the hole on base mounting part, and then install by pressing in.

Front Floor Carpet

...

Rear Floor Carpet

...
