Nissan Armada 2025-2026 Service and Repair Manual: Special Service Tools
The actual shapes of the TechMate tools may differ from those of the special service tools illustrated here.
Tool number (TechMate No) Tool name | Description | |
|---|---|---|
KV10111100 (NI-37228) Seal cutter |
| Removing carrier cover |

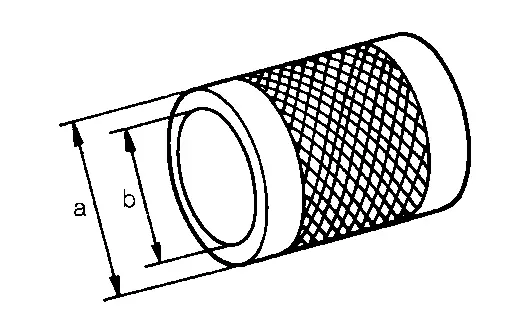

ST30720000 (NI-25405) Drift a: 77 mm (3.03 in) dia. b: 55.5 mm (2.185 in) dia. |
|
|
ST27863000 ( — ) Drift a: 74.5 mm (2.933 in) dia. b: 62.5 mm (2.461 in) dia. |
|
|
ST33200000 (NI-26082) Drift a: 60 mm (2.36 in) dia. b: 44.5 mm (1.752 in) dia. |
|
|
ST33051001 (NI-22888-20) Puller |
| Removing side bearing inner race |
ST33061000 (NI-8107-2) Base a: 28.5 mm (1.122 in) dia. b: 38 mm (1.50 in) dia. |
| Removing and installing side bearing inner race |
KV10112100 (BT-8653-A) Angle wrench |
| Tightening the drive gear mounting bolt |

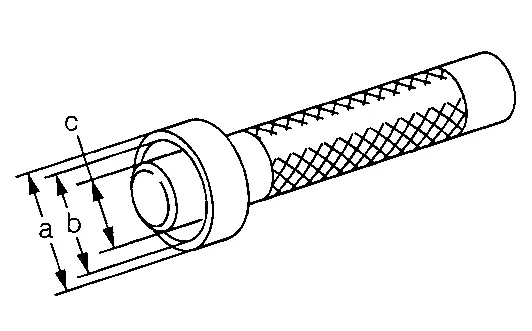

ST33230000 (NI-35867) Drift a: 51 mm (2.01 in) dia. b: 41 mm (1.61 in) dia. c: 28 mm (1.10 in) dia. |
| Installing side bearing inner race |
ST3127S000 (NI-25765-A) Preload gauge |
| Measuring pinion bearing preload and total preload |
KV38100200 (NI-26233) Drift a: 65 mm (2.56 in) dia. b: 49 mm (1.93 in) dia. |
| Installing pinion front bearing outer race |
ST30613000 (NI-25742-3) Drift a: 72 mm (2.83 in) dia. b: 48 mm (1.89 in) dia. |
| Installing pinion rear bearing outer race |
ST30611000 (NI-25742-1) Drift bar |
| Installing pinion rear bearing outer race (Use with ST30613000) |
ST30901000 (NI-26010-01) Drift a: 79 mm (3.11 in) dia. b: 45 mm (1.77 in) dia. c: 35.2 mm (1.386 in) dia. |
| Installing pinion rear bearing inner race |
KV381054S0 (NI-34286) Puller |
| Removing front oil seal |
Preparation
...
Commercial Service Tools
Tool name Description Oil seal remover
Removing side oil seal
Removing front oil seal
Sliding hammer
Removing differential assembly Flange wrench
Removing and installing drive pinion lock n ...
