Nissan Armada 2025-2026 Service and Repair Manual: Stone Guard Coat
WARNING:
To prevent damage caused by stones, the lower outer body panel (fender, door, etc.) have an additional layer of Stone Guard Coating over the ED primer coating. When replacing or repairing these panels, apply Stone Guard coating to the same portions as before. Use a coating which is rust preventive, durable, shock-resistant and has a long shelf life.

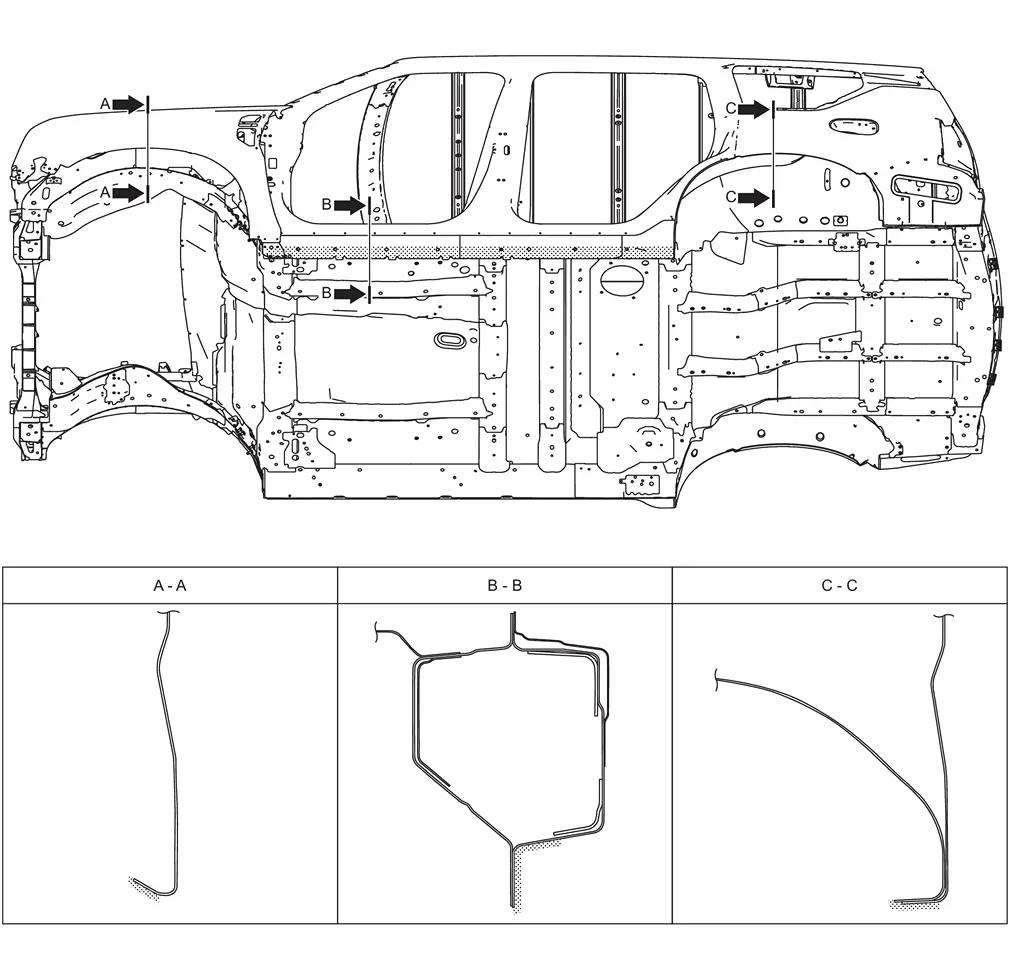

 : Stone guard coated portions |
