Nissan Armada 2025-2026 Service and Repair Manual: Structure of MAG Welding Machine

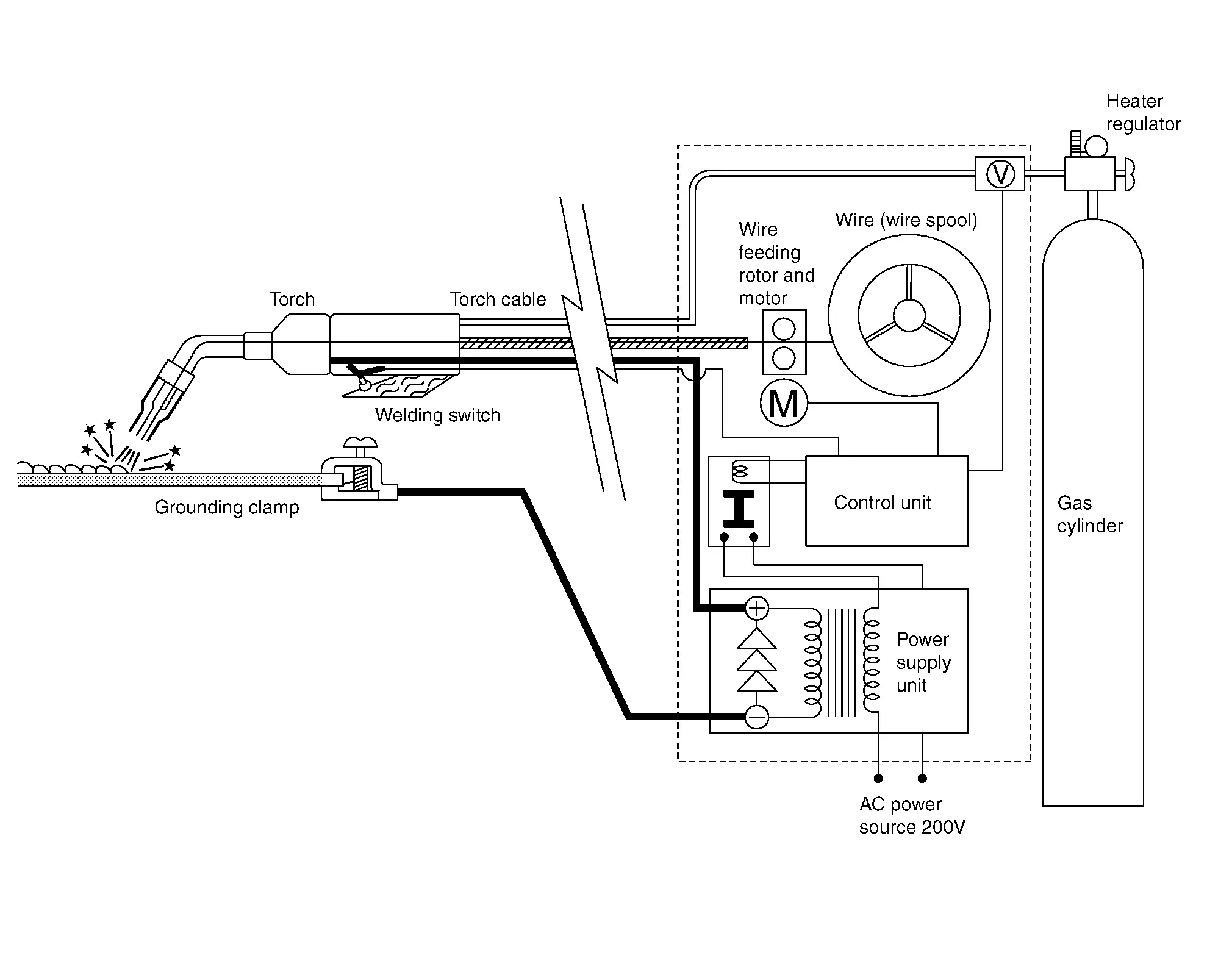

The welding machine consists of a power supply unit composed of a transformer and rectifier which converts the source voltage to welding voltage and rectifies the current. A controller which controls the voltage, current and welding wire feed speed corresponding to the thickness of the welding panel. Welding wire which is wound around the wire spool, wire feed motor, welding torch, gas cylinder, and regulator.
Features of MAG Welding
Less slag
Less thermal strain
Comparatively easy to master
Greater weld strength than gas or spot welding
Suitable for thin sheet metal
Less influence of welding position to the strength of weld
Not s ...
Condition of Panel to be Welded
Paint, rust, or oils on the surface of the panel cause blowholes and spatter when the panel is welded. Thoroughly remove any foreign matter with a belt sander or wire brush.
...
