Nissan Armada 2025-2026 Service and Repair Manual: Tow Truck Towing
CAUTION:
To avoid the risk of minor injury or property damage : If the 12V battery has low or no voltage, the transmission cannot be shifted into neutral. To transport the vehicle, it must have all four wheels off the ground and placed on a flatbed or track system.
All applicable state or Provincial (in Canada) laws and local laws regarding the towing operation must be obeyed.
It is necessary to use proper towing equipment to avoid possible damage to the vehicle during towing operation. Towing is in accordance with Towing Procedure Manual at dealer.
Always attach safety chains before towing.
When towing, check that the transmission, axles, steering system, and powertrain are in working condition. If any unit is damaged, dollies or a flatbed tow truck must be used.
2WD MODELS

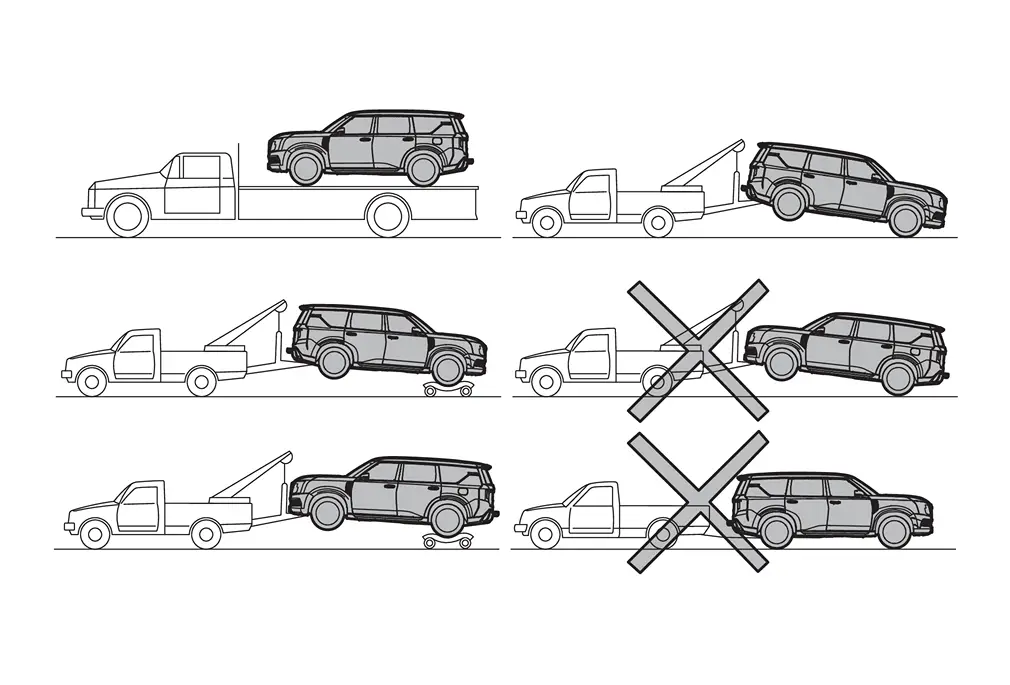

NISSAN recommends that the vehicle be towed with the driving (rear) wheels off the ground or place the vehicle on a flatbed truck as shown in the figure.
CAUTION:
Never tow the vehicle when the engine is running (with electronic air suspension system).
Never tow automatic transmission models with the rear wheels on the ground or four wheels on the ground (forward or backward), as this may cause serious and expensive damage to the transmission.
If it is necessary to tow the vehicle with the front wheels raised, always use towing dollies under the rear wheels.
When towing rear wheel drive models with the front wheels on the ground or on towing dollies:
Turn the ignition switch to the ACC or ON position, and secure the steering wheel in a straight ahead position with a rope or similar device.
Move the selector lever to the N (Neutral) position.
If the speed or distance must necessarily be greater, remove the propeller shaft before towing to prevent damage to the transmission.
4WD MODELS

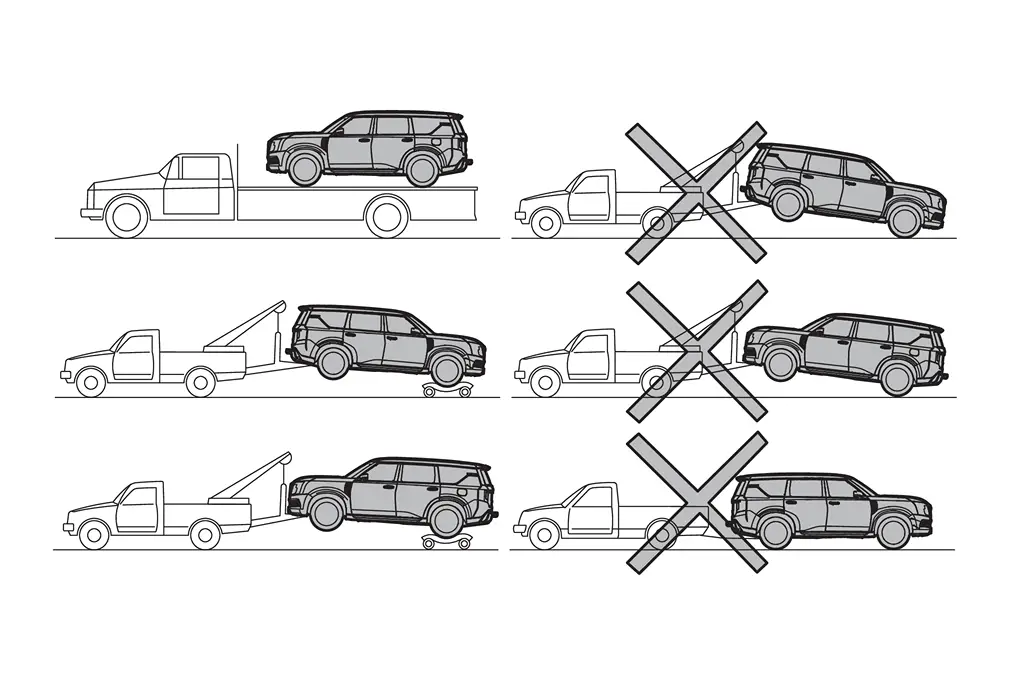

NISSAN recommends that towing dollies be used when towing the vehicle or the vehicle be placed on a flatbed truck as shown in the figure.
CAUTION:
Never tow the vehicle when the engine is running (with electronic air suspension system).
Never tow 4WD models with any of the wheels on the ground as this may cause serious and expensive damage to the powertrain.
2-Pole Lift
WARNING:
When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
When setting the lift arm, never allow the arm to contact ...
Vehicle Recovery (Freeing a Stuck Vehicle)
FREEING TRAPPED VEHICLE
WARNING:
Stand clear of a stuck vehicle.
Never allow anyone to stand near the towing line during the pulling operation.
Never spin the tires at high speed. This could cause the ...
