Nissan Armada 2025-2026 Service and Repair Manual: 2-Pole Lift
WARNING:

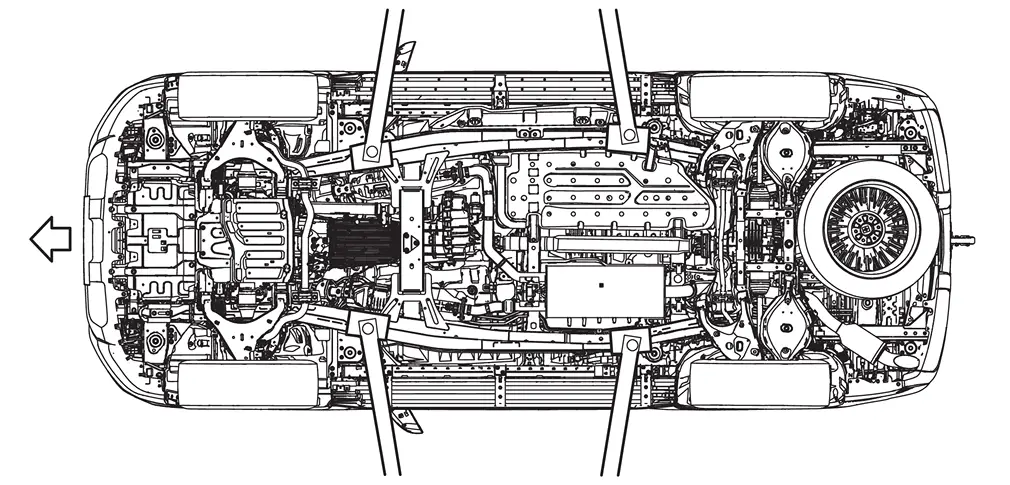

When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear of the vehicle are well balanced.
When setting the lift arm, never allow the arm to contact the brake tubes, brake cable, or fuel lines.
 | : Vehicle front | ||||
Garage Jack and Safety Stand
WARNING:
CAUTION:
Place a wooden or rubber block between safety stand and vehicle body when the supporting body is flat.
Never place a jack on the cooling fin of rear final drive assembly.
Place a jac ...
Tow Truck Towing
CAUTION:
To avoid the risk of minor injury or property damage : If the 12V battery has low or no voltage, the transmission cannot be shifted into neutral. To transport the vehicle, it must have all fo ...
