Nissan Armada 2025-2026 Service and Repair Manual: VDC OFF SWITCH : Removal & Installation
REMOVAL
NOTE:
The VDC OFF switch is integrated with the select switch unit.
Remove front center console switch finisher assembly. Refer to Removal and Installation.

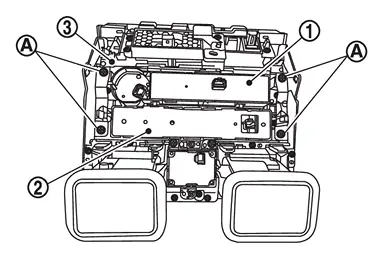

Remove the screws
, and remove select switch unit
with multi function switch
from front center console switch finisher assembly
.
Remove the screws and remove select switch unit .
INSTALLATION
Install in the reverse order of removal.
