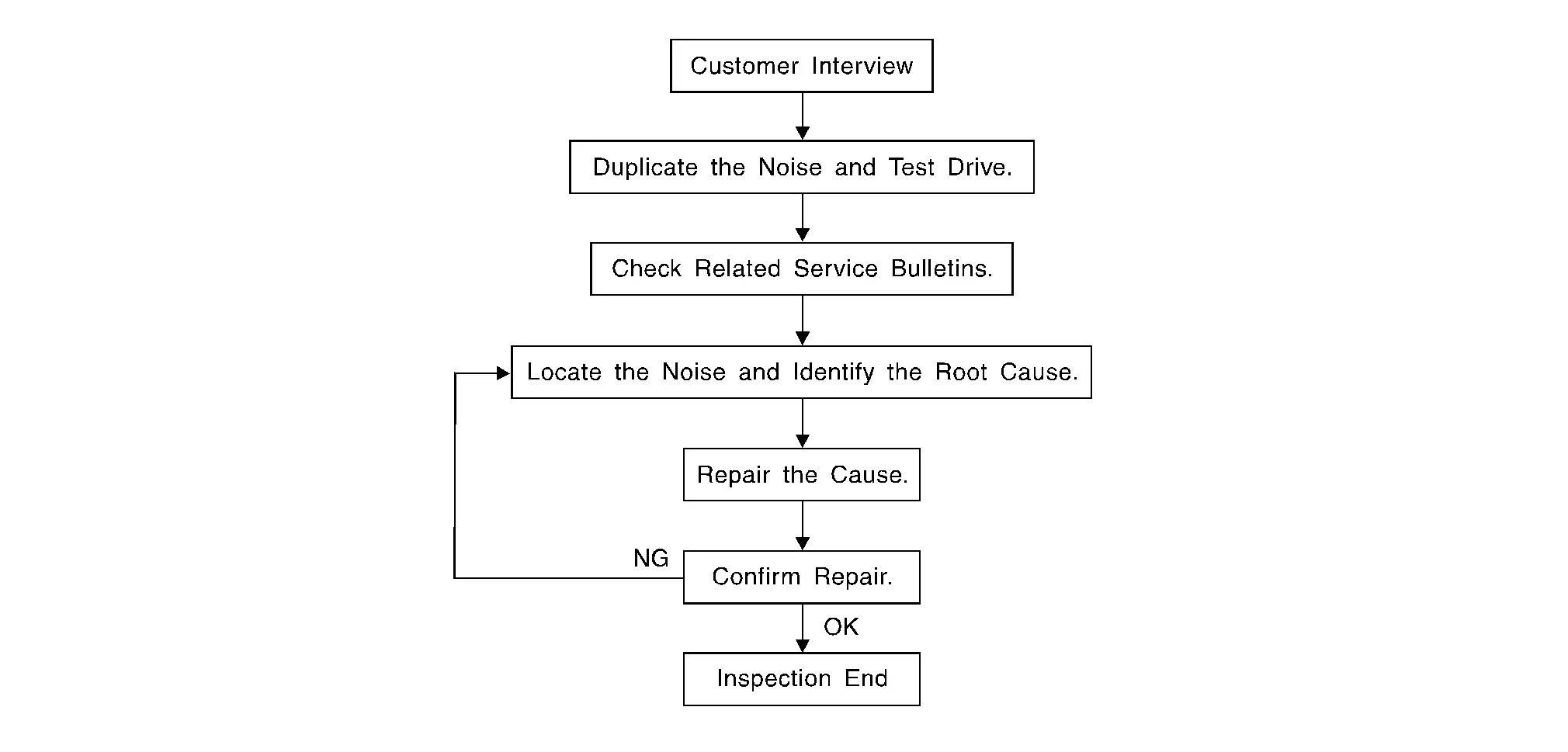

Nissan Armada 2025-2026 Service and Repair Manual: Work Flow
CUSTOMER INTERVIEW
Squeak – (Like tennis shoes on a clean floor)
Creak – (Like walking on an old wooden floor)
Rattle – (Like shaking a baby rattle)
Knock – (Like a knock on a door)
Tick – (Like a clock second hand)
action or road conditions.
Thump – (Heavy, muffled knock noise)
Buzz – (Like a bumblebee)
Buzz characteristics include high frequency rattle / firm contact.
DUPLICATE THE NOISE AND TEST DRIVE
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.
CHECK RELATED SERVICE BULLETINS
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
Looking for loose components and contact marks.
Refer to Inspection Procedure.
REPAIR THE CAUSE
If the cause is a loose component, tighten the component securely.
If the cause is insufficient clearance between components:
CAUTION:
NOTE:
Always check with the Parts Department for the latest parts information.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 × 135 mm (3.937 × 5.315 in)
76884-71L01: 60 × 85 mm (2.362 × 3.346 in)
76884-71L02: 15 × 25 mm (0.591 × 0.984 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.772 in) thick, 50 × 50 mm (1.969 × 1.969 in)
73982-50Y00: 10 mm (0.394 in) thick, 50 × 50 mm (1.969 × 1.969 in)
INSULATOR (Light foam block)
80845-71L00: 30 mm (1.18 in) thick, 30 × 50 mm (1.181 × 1.969in)
FELT CLOTHTAPE
68370-4B000: 15 × 25 mm (0.591 × 0.984 in) pad
68239-13E00: 5 mm (0.197 in) wide tape roll
UHMW (TEFLON) TAPE
SILICONE GREASE
SILICONE SPRAY
Used when grease cannot be applied.
DUCT TAPE
Used to eliminate movement.
CONFIRM THE REPAIR
Inspection Procedure
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
Cluster lid A and instrument panel
Acrylic lens and combination meter housing
Instrument panel to front pillar garnish
Instr ...
