Nissan Armada 2025-2026 Service and Repair Manual: Refilling
WARNING:
Remove engine under cover. Refer to Exploded View.

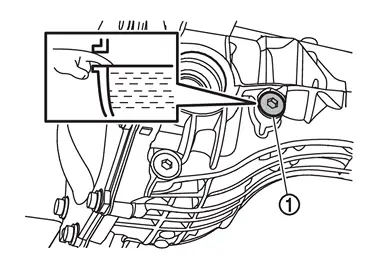

Remove filler plug
and gasket. Then fill with new gear oil until oil level reaches the specified level near filler plug mounting hole.
| Recommended oil and capacity: | Refer to Fluids and Lubricants. |
Set a gasket on filler plug, and install it to final drive assembly.
CAUTION:
Never reuse gasket.
Tighten filler plug to the specified torque. Refer to Exploded View.
Install engine under cover. Refer to Exploded View.
Draining
WARNING:
The ignition switch OFF.
Remove engine under cover. Refer to Exploded View.
Remove drain plug and gasket.
Drain gear oil.
Set a gasket on drain plug and install it to final drive assembly. ...
