Nissan Armada 2025-2026 Service and Repair Manual: Work Flow

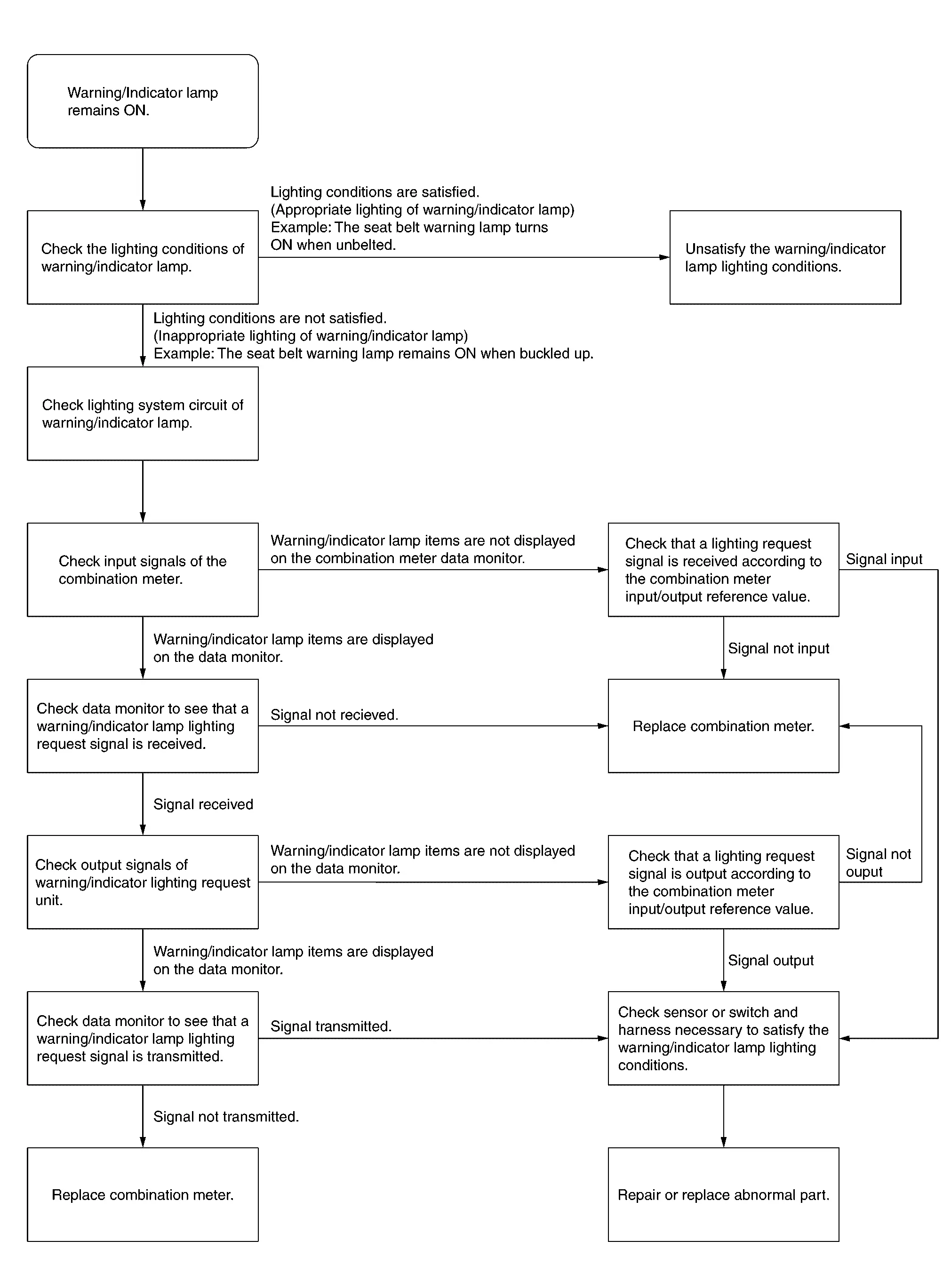

Warning/indicator Lamp Remains on

The Fuel Gauge Indicator Does Not Operate
