Nissan Armada 2025-2026 Service and Repair Manual: Work Procedure
WARNING:
UNIT CHARACTERISTIC VALUE CONFIRMATION

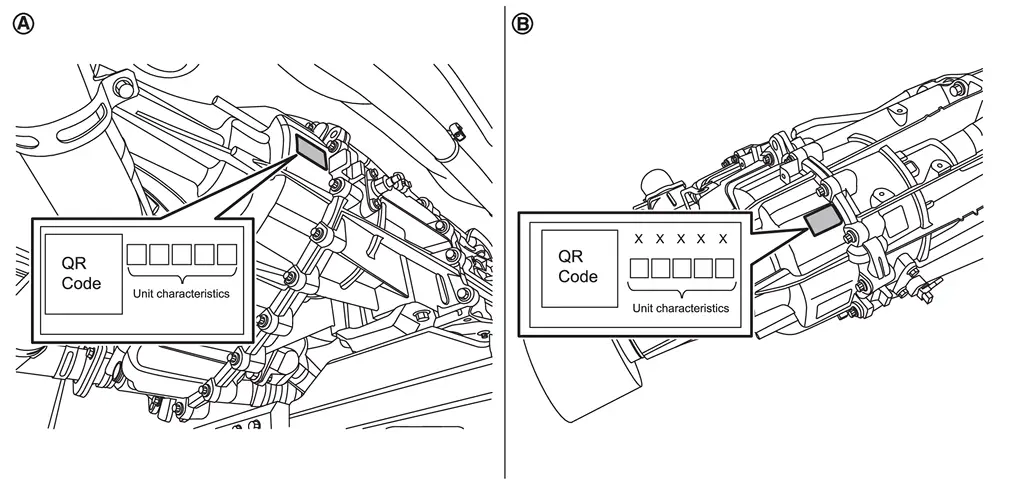

Confirm the 5-digit alphanumeric unit characteristic value written in the QR code pasted on the side or top of the transfer assembly.
 | : Side surface |
 | : Top surface |
NOTE:
There is space on the top to check with the camera.
>>GO TO 2.
WRITING UNIT PARAMETER
With CONSULT
Ignition switch ON.
Select “Work support” in “AWD/4WD”.
Perform “Unit parameter writing” to the CONSULT display.
WORK END
Unit Parameter Writing
After working the following, transfer unit parameter must be written to transfer control unit.
Transfer control unit replacing
Transfer assembly replacing
Transfer control actuator replacing
Transfer ...
