Nissan Armada 2025-2026 Service and Repair Manual: Adjustment

WARNING:

CAMBER, CASTER

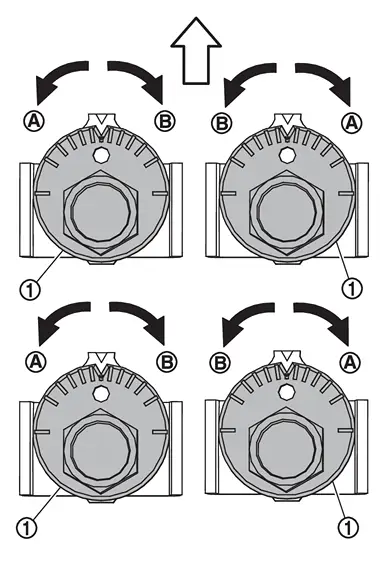

Adjust with the front/rear side adjusting bolts on the lower link.

: Vehicle front

See the following table for the amount of cam bolt scale movement and the variation of camber and caster.

CAUTION:

Align the adjusting bolt cutout with the stamp of lower link bracket.

	: Vehicle outside
	: Vehicle inside

Amount of cam bolt scale movement	Front	3 segment on vehicle outside	3 segment on vehicle inside	3 segment on vehicle inside	3 segment on vehicle outside	3 segment on vehicle inside	3 segment on vehicle outside	Amount of movement 0	Amount of movement 0
	Rear	3 segment on vehicle inside	3 segment on vehicle outside	3 segment on vehicle inside	3 segment on vehicle outside	Amount of movement 0	Amount of movement 0	3 segment on vehicle inside	3 segment on vehicle outside
Camber angle		0°	0°	＋0° 23′	-0° 22′	＋0° 12′	-0° 11′	＋0° 12′	-0° 11′
Caster angle		-0° 36′	＋0° 37′	0°	0°	＋0° 18′	-0° 18′	-0° 18′	＋0° 18′

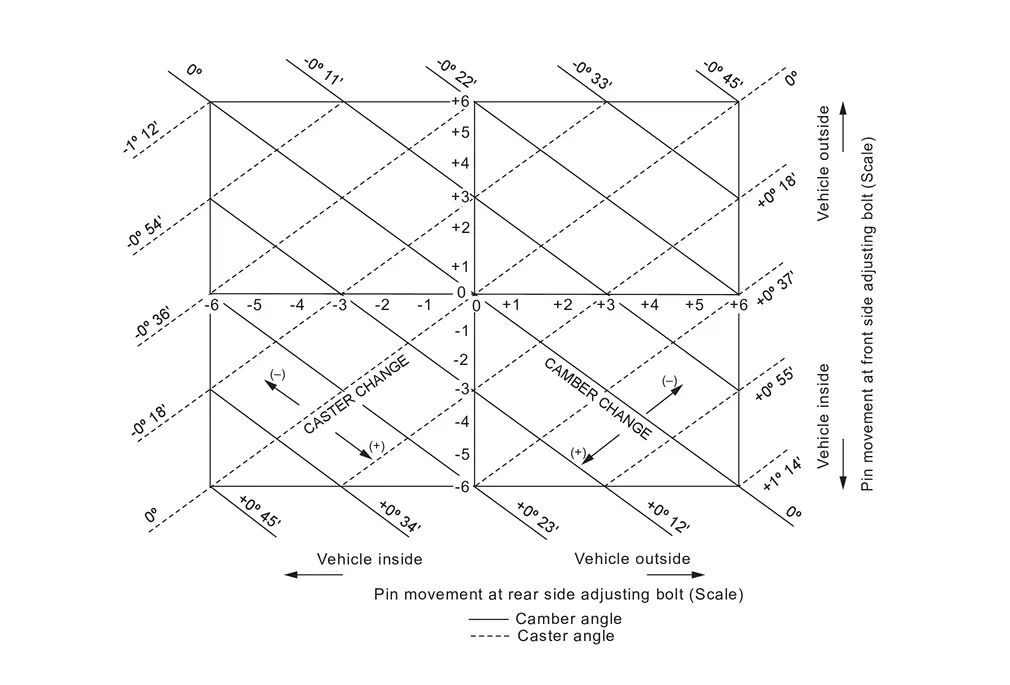

Note the following, and adjust as shown in the figure. Obtain the point at the intersection of the measured values on the figure.

Read the coordinate (scale) of the intersection point. Move the front/rear side adjusting bolts by each scale.

• If the coordinate (scale) of the intersection point is positive, move the adjusting bolt to the vehicle inside.

• If the coordinate (scale) of the intersection point is negative, move the adjusting bolt to the vehicle outside.

Measure the camber and caster again. Check that the standard is within the proper range.

CAUTION:

• Always adjust the angle difference between left and right cambers from –0º 33′ to 0º 33′.

• Always adjust the angle difference between left and right casters from –0º 45′ to 0º 45′.

Camber, caster

:Refer to Wheel Alignment.

TOE-IN

• Loosen the steering outer socket, and then adjust the length using steering inner socket.

  Toe-in

  :Refer to Wheel Alignment.

  CAUTION:

  • Always evenly adjust both toe-in alternately and adjust the difference between the left and right to the standard.

  • Always fix the steering inner socket when tightening the steering outer socket.

• After toe-in adjustment, rack end value reset. Refer to Work Procedure.
• After toe-in adjustment, adjust neutral position of steering angle sensor. Refer to Work Procedure.
