Nissan Armada 2025-2026 Service and Repair Manual: Adjustment

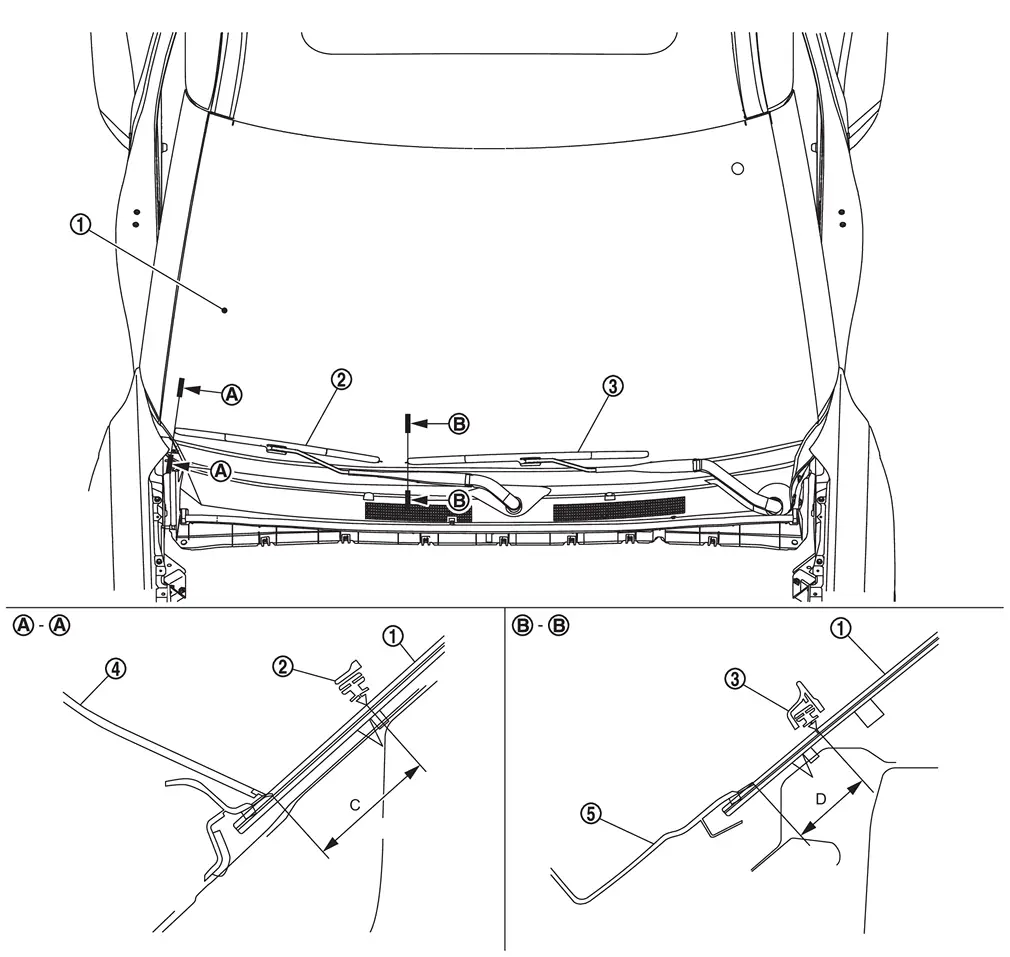

WIPER BLADE POSITION ADJUSTMENT
Adjust clearance between the end of cowl top cover/front fender cover RH and the top of front wiper blade center.
 | Windshield glass |  | Front wiper blade RH |  | Front wiper blade LH |
 | Front fender cover RH |  | Cowl top cover |
| C | : 20.8 ± 7.5 mm (0.82 ± 0.30 in) |
| D | : 13.0 ± 7.5 mm (0.51 ± 0.30 in) |
Removal and Installation
CAUTION:
Clean windshield glass and front wiper refill so that windshield glass may not be damaged by dust, etc.
REMOVAL
Operate front wiper to the auto stop position. Refer to System Description.
Fu ...
